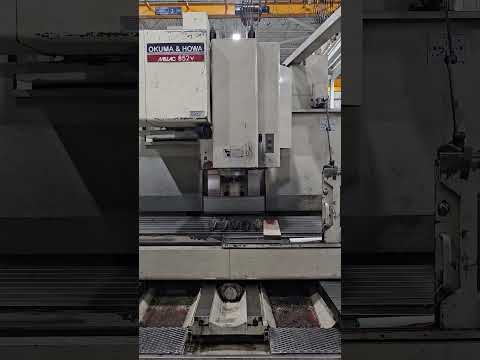

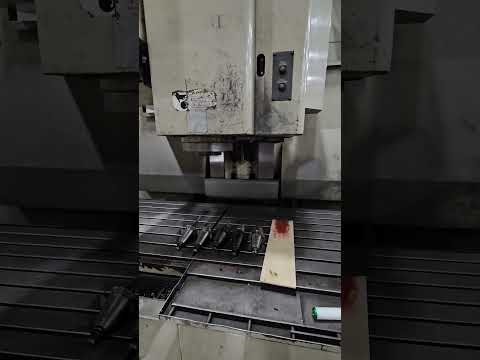

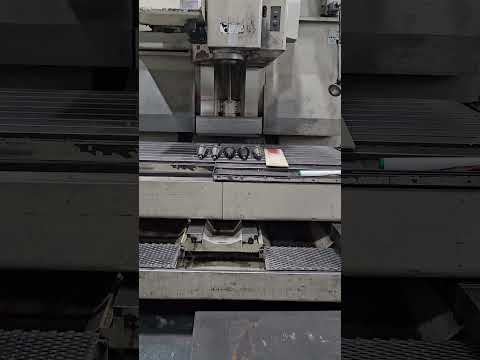

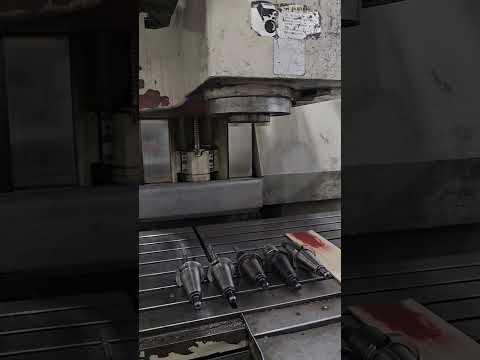

2000 Okuma & Howa 852V Heavy Duty 50 Taper Vertical Machining Center * Fully Installed for Inspection

2000 Okuma’s MILLAC 852V Vertical machining center, represents the pinnacle of large machining centers with high rigidity, heavy cutting ability and high operability. The strong base column construction has optimally-placed ribs to counter chatter and twisting during heavy-duty cutting. Traditional box ways are used for all axes to provide high accuracy and rigidity over the long term.

This Machine equipped with the use of variable speed gear head and large-diameter spindle bearings, this vertical machining center can perform heavy-duty cutting and high speed machining with high torque from low to high speeds. The X, Y, Z travels and large table designed to withstand heavy loads are well suited for machining large, heavy work pieces.

Key Features of the OKUMA-HOWA MILLAC 852V Vertical Machining Center
Max. Load Capacity kg (lb) 3,800 (8,360)
Axis Travels (X/Y/Z) mm (in) 3,050/ 850/750 *(80.7 /33.46/29.53)
Rapid Traverse m/min(ipm) X/Y: 12 (472), Z: 16 (630)
Spindle Speed min-1 6,000 Cat 50 Taper
Max..Spindle Torque Nm (lbs ft) 481/390 (355/288) 30min/cont.

MAIN SPECIFICATIONS:
X-Axis Travel ............................... 80.71"
Y-Axis Travel ............................... 33.46"
Z-Axis Travel ............................... 29.53"
Table Dimensions .......................86.6" x 33.46"
Spindle Speed ............................ 6,000 RPM
Spindle Taper ............................. CAT-50

EQUIPPED WITH:
Fanuc 16-MB CNC Control
36-Station Automatic Tool Changer

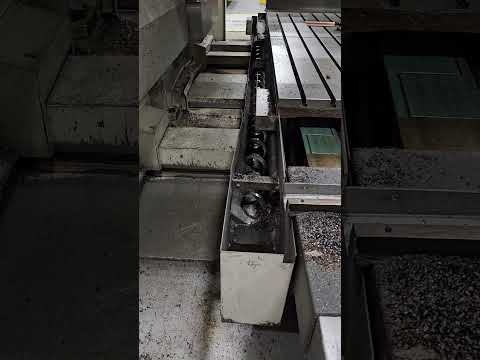

Heavy Duty Chip Augur Way Covers

Special Reduced Price.:...................$ Please Call with All Options!.

F.O.B: Machine Prep Loading Included in Pricing.

Shipping Quotes on Request.
