Used WARNER & SWASEY GRAY Ringmaster RM-60M | Vertical Boring Mills (incld VTL)
Have one to sell?
ConditionUsed
1 available

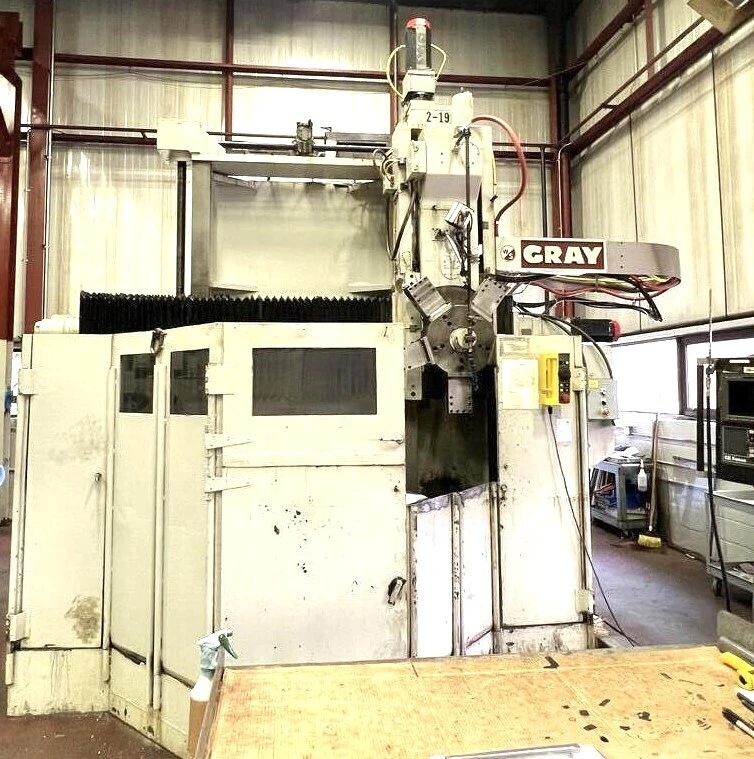

Gray Ringmaster RM-60 CNC VTL Excellent Condition
Fanuc 21i-T CNC Control
Main Specifications:
Max Turning Diameter: 60″
Max Turning Height: 62″
Maximum Height Under Rail: 70″
Vertical Ram Travel: 36″
Vertical Turret Travel on Rail: 30″
Horizontal Turret Travel on Rail: 56"
Max Swing: 64″
Table Load Capacity Confirming
Table Speeds: 4 - 22 - 22--275 RPM
Equipped With:
60" 4-Jaw Combination Table Chuck
5 Station Turret with All Tooling
75 HP Spindle Motor 2-Speed Gearbox
Vertical Ram Slide
MPG Control Pendant
RS-232 Port
Coolant System
Chip Conveyor
Power Source: 220 V, Three Phase, 60 Hz
Dimensions: 154″ x 156″ x 162″ High
Machine Weight : 40,000 Lbs. Approx.
Murphy Machinery
Office Phone: 262-534-4124
Mobile Phone: 414-520-0843
Email: markmurphy@murphymachinery.com
Web Site: murphymachinery.com
Gray Ringmaster RM-60 CNC VTL Excellent Condition
Fanuc 21i-T CNC Control
Main Specifications:
Max Turning Diameter: 60″
Max Turning Height: 62″
Maximum Height Under Rail: 70″
Vertical Ram Travel: 36″
Vertical Turret Travel on Rail: 30″
Horizontal Turret Travel on Rail: 56"
Max Swing: 64″
Table Load Capacity Confirming
Table Speeds: 4 - 22 - 22--275 RPM
Equipped With:
60" 4-Jaw Combination Table Chuck
5 Station Turret with All Tooling
75 HP Spindle Motor 2-Speed Gearbox
Vertical Ram Slide
MPG Control Pendant
RS-232 Port
Coolant System
Chip Conveyor
Power Source: 220 V, Three Phase, 60 Hz
Dimensions: 154″ x 156″ x 162″ High
Machine Weight : 40,000 Lbs. Approx.
Equipped With:
60" 4-Jaw Combination Table Chuck
5 Station Turret with All Tooling
75 HP Spindle Motor 2-Speed Gearbox
Vertical Ram Slide
MPG Control Pendant
RS-232 Port
Coolant System
Chip Conveyor
