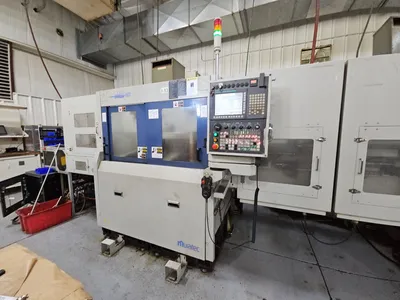

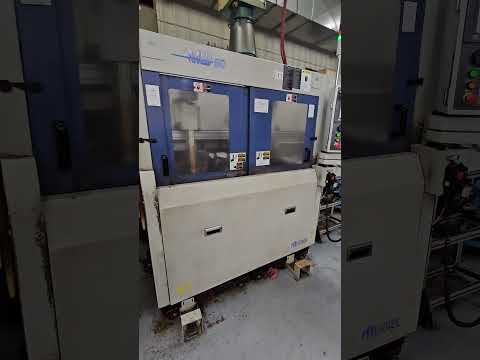

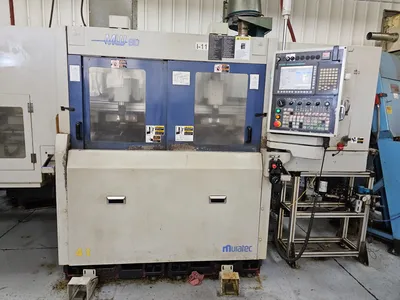

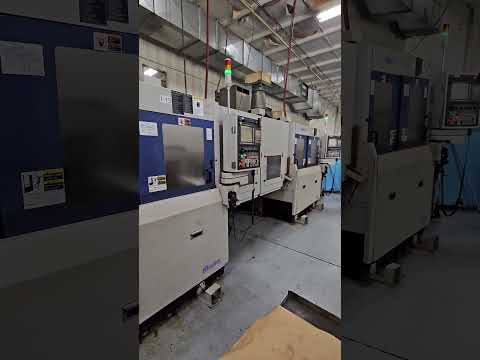

2016 MURATEC MW-80 Twin Spindle - Twin Gantry Loaders (2) Machine Twin Cell Available Loaded with Integral Turn-Around Stations with Parts Input - Unloader Conveyors and Inspection Station Options Installed. Maximum Chuck Size 6" 3-Jaw Standard or 8" 3-Jaw CNC Collet Chucks
on Machines Best as a 4 Spindles Cell Production Cell Fully Tested Murata
Accuracy Reports and machine full cleaned and tested for Inspections.
* Machines are Fully Installed for Inspections.
2016 MURATEC MW-80 Twin Spindle - Twin Gantry Loaders (2) Machine Cell or can Separate These Machines. Maximum Chuck Size 6" 3-Jaw Standard CNC Collet Chucks on Stock Machine Installed. Number of Turret Stations Tool Plate x 2, Width: 14.57 in Tool Slide Loaded with All Requested Options.
Muratec MW-80 GT Twin Spindle-Twin Gantry Loaders Featuring Super High-Speed Processing with a twin gantry Loaders for high-speed processing of parts up to 80mm (3.14") Standard in diameter for Shorter Cycle Times With its high-speed gantry, fast load /unload times, and reduced cycle times, the MW80 delivers shorter cycle times and production reliability running fully automated A-B Operations.
The Muratec MW-80-GT is incredibly flexible and has a wide gang tool platform for added versatility and ability Installed Special Secondary High Speed Milling Units Can Be Added for Electric High Torque or Air driven Mill-Drill Functions or Grinder Finish Turning Application with Yuasa or Technara High RPM 30k 80k Spindles on Turret Cross Slide.
Main Specifications
Maximum Spindle Speed 6000 rpm
Spindle Drive Motor 7.5 kW /30 min 10 Hp.
Total Machine Weight (Approx.) 8818 Lbs.
Gantry Loader Standard Work Piece Handling Capacity
Φ80 mm x 50 mm , up to 0.5kg/piece x 2 parts in Gantry
Spindle Nose Size Flat nose
Spec. of Axis X-axis 18 m/min | Z-axis 18 m/min
Equipped With
1000 PSI MP High Pressure Coolant System Each Machine

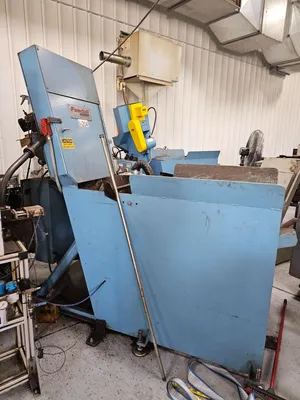

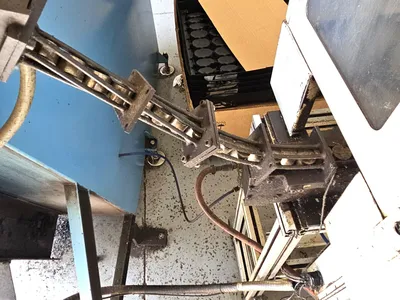

Parts Bowl Feeder System Bar Stock or Forgings or Castings.
Part Unloader Conveyor System with Post Process Gaging.
Special in Plant Under Power Pricing on Request.
F.O.B: Machine can be Prep and Loaded Price on Request.
Excellent Export Capabilities to Load & Secure in Delivered Container.
Please Email Request.
Thank You!
Sincerely,
Mark Murphy
Murphy Machinery
Mobile 414-520-0843
