Used HANKOOK PROTEC 9NC | Oil Field & Hollow Spindle Lathes

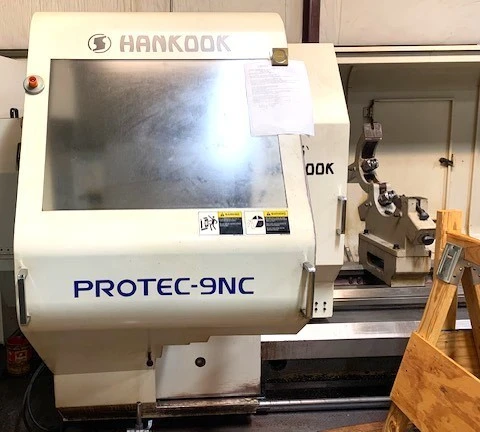

Hankook Protec 9NC Heavy Duty Universal Turning Center

Main Specifications:
Maximum Swing Over Bed ................ 37.40"
Maximum Swing Over Slide .............. 24.80"
Distance Between Centers ............... 118.11"
Maximum Workpiece Weight ........... 11,000 Lbs
Spindle Speeds, 3 Ranges ................. 2-1000 RPM
Spindle Drive Motor ........................... 24 HP/29 HP
Spindle Bore:........................................9.75"

Equipped with:
Fanuc 21iTB CNC Control
21" 3-Jaw Power Chuck Installed
21" 4-Jaw Chuck Stock on Skid
Square Automatic Turret Installed
Drum Type 8 Station Bolt on Turret w/ Indexing
Heavy Tailstock
