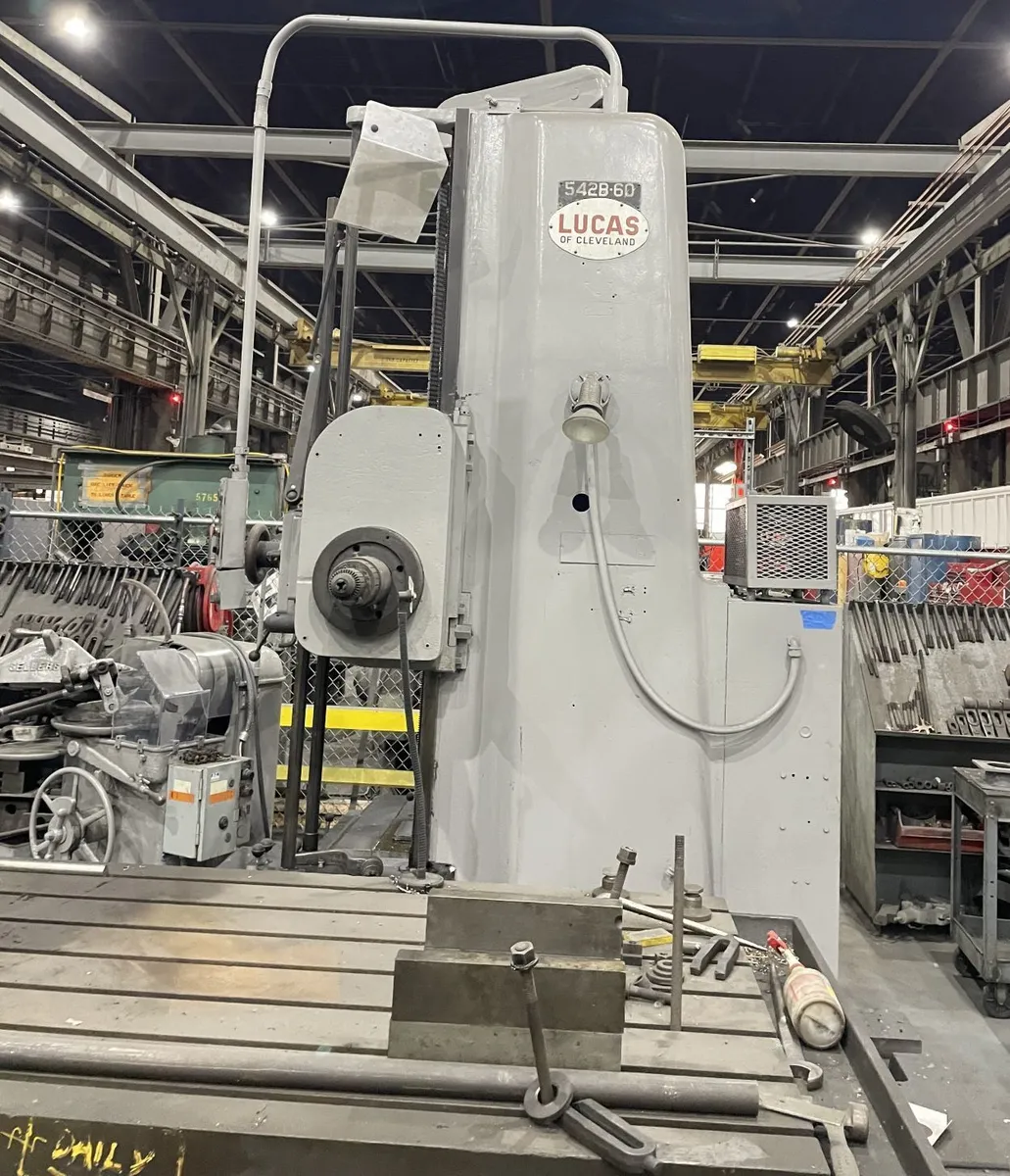

Used LUCAS 542B60 | Horizontal Table Type Boring Mills

LUCAS 5" SPINDLE DIAMETER TABLE TYPE HORIZONTAL BORING BAR
MODEL 542-B60 4 WAY BED MACHINE
Excellent for Repair Shops Re-Scraped All Ways

PENDANT CONTROL
Travel X-Axis: TABLE 96"
Travel Y-Axis: VERTICLE Spindle 48"
Travel W- SADDLE 49" In-Out
Travel Z- SPINDLE 36"
MAIN SPINDLE 25 HP
TABLE size: 48 x 74"
Spindle speeds 26 (9-1200 rpm)
FEEDS ............. (81) .0001 TO 1.038 IPR Spindle Taper: NO#6 MT or ISO 50 Taper * Confirming
Digital Readout * Confirming

20' L X 17' 6"W X 13' 2"H 12 Ft. Shipping Height Confirming.
RAPID TRAVERSE
TOOLING LIST * Confirming
MACHINE WEIGHT APPROX. 35,000 LBS.

ANGLE PLATES IN STOCK AND ADDITIONAL TOOLING
TOOLING SEEN IN PHOTOS.

1. All Available Tool Holders List in Process Included.
2. Spindle Taper MT#6 or Could Be Upgraded ISO 50 Taper or Cat 50 Taper to Confirm.
3. Machine Ways Re-Scrapped Condition and Re-Painted.

SPECIAL PRICE:...... $ Confirming offer Considered.

F.O.B.: Requires Local Prep & Rigging Pricing.
TERMS: Payment in Full Prior to Shipment.
