Used 2002 VICTOR MACHINERY 35-120 | CNC Turning Centers

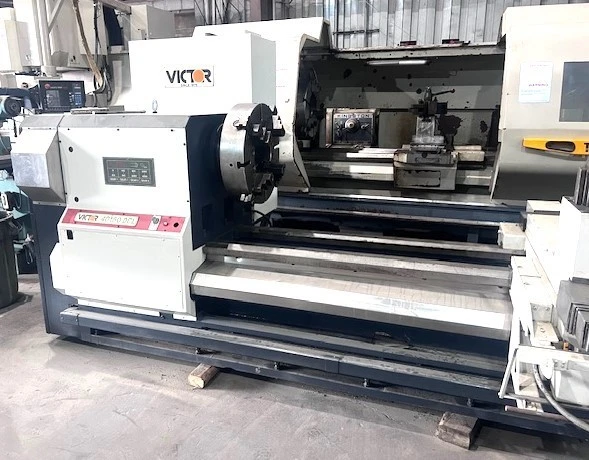

Victor 35-120 CNC Heavy Duty Teach Lathe with Fanuc CNC Conv. Teach CNC Control

MACHINE SPECIFICATIONS

• Multiple Function Lathe
1. Manual Handwheel Operation
2. Machine Guidance Operation
3. Teach-in / Playback CNC Operation
4. Automatic CNC G-Code Operation
• 34.6” swing over bed
• 25.2” swing over cross-slide
• 120” distance between centers
• ∅6” diameter hole through spindle (∅9” and ∅12.5” optional)
• 26.3” X-axis cross-slide travel
• Main casting pieces are by massive Meehanite castings for superior dampening and rigidity
• Headstock gears are made from chromium molybdenum steel (SCM21), hardened by
carbonization, and precisely ground to provide smooth and quiet running
• Forced lubrication of headstock gears
• Spindle is supported by three precision bearings to insure accuracy and rigidity during heavy
cutting (Suitable for large diameter work-pieces)
• Ribbed bed constructed from an annealed processed casting insures no deformation occurs on the
slideways
• Hardened and ground bed ways
• Saddle is coated with TURCITE-B to provide wear resistance
• Rigid construction of the tailstock is able to withstand heavy drilling and cutting
• Automatic force type lubrication system to all sliding surfaces & ballscrews
• Hardware overtravel limit switch for all travel directions
• Tailstock overtravel limit switch to avoid unexpected crashes
• Complete FANUC System with Fanuc AC Brushless Servo Motors & Drives
• Triple electronic handwheels for manual and automatic turning operations
• Control panel conveniently mounted on apron for easy access
• Splash guards to protect the operator from chips and coolant
• CRT Screen / CNC Keyboard mounted swivel arm for easy access and viewing
• 30 HP Spindle Motor (40 HP optional)
35 DCL: Digital Control Lathe

MACHINE SPECIFICATIONS (continued)

• Vector control spindle drive – Excellent torque characteristic at all spindle speeds
• Heavy duty, manual tailstock with Inch/Metric graduations
• Tailstock taper: MT #6; Quill diameter: 4.5”, Quill Travel : 11.8”
• Feed rates: 0.01 ~ 200.0 in/min variable by program input
• Rapid traverse: X-axis = 225 in/min, Z-axis = 300 in/min
• Spindle speeds: ∅6” Bore: 3-450 RPM
• Spindle Nose: ∅6” Bore: A2-11 Nose
• Automatic CNC programmable gear change system (M41 – M44)
• Aloris Super-Precision Quick Change Tool Post (EA Series)
• Standard Tool size 1½” x 1½” square shank
• Chuck guard with safety interlock switch to prevent unexpected spindle movement
• Halogen work light – Fully integrated to allow for CNC control of on/off function
• Coolant System – Fully integrated to allow for CNC control of on/off function
• Removable frontal chip pan under bed
• Set of leveling pads, screws, and nuts
• Set of wrenches for operating machine
• Set of Operating and Machine Guidance manuals
• Floor area: 35-120 - DCL: 212” x 71”

CONTROL SPECIFICATIONS

• Fanuc 20-TA Industry Standard CNC
• 9” monochrome monitor & 44 key keypad
• 2-axis (X & Z) digital readout screen
• Simultaneous 2-axis linear and circular interpolation
• Manual operation via handwheels
• Machine guidance operation via handwheels
• Teach-in / Playback operation: manually run 1st part, then Playback for automatic operation
• Automatic Generation of G-code from Geometry data during teach in operation
• Full CNC G-code, M-code, T-code, and S-code Functions
• Simultaneous multiple M-code processing (Up to 3 M-codes)
• Custom Macro B Programming Language for G-code programming (optional)
• Background Editing of G-code programming during program execution (optional)
• 6 CNC Operation Modes: MEM, EDIT, MDI, Mchn Gdnce, Man/Hndwl, Ref Return
• 5 Auxiliary CNC Modes: Dry Run, Single Block, Optional Blk Skip, Manual Handwheel
Interrupt, and Auxiliary Function lock

CONTROL SPECIFICATIONS (continued)

• Manual Interrupt of automatic operations: Handwheel Interrupt and Spindle Interrupt
• Constant Surface Speed (CSS) control for manual and automatic operations (Standard)
• Conversational graphics programming
• Diameter / Radius programming
• Absolute and incremental programming
• Inch / Metric input and display
• On-line calculator function to aid in data input
• On screen tool path graphics to verify part program
• Taper, Chamfer, Radius, Roughing, Grooving, & Drilling in Manual and Automatic modes
• Inch/Metric threading; Straight, Taper, and Multi-lead threading
• X-Area Minus Area Cutting Function (Cutting from backside of part)
• User programmable “Software Travel limits” to limit the travel for X & Z axes
• Intelligent hardware travel limits - only stops movement in the over-travel direction
• Inch / Metric feed rate input: inch/rev and inch/min or mm/rev and mm/min
• Gear indicator lights on status panel
• Automatic CNC programmable gear change system (M41 – M44)
Spindle load meter: 0% - 180% of rated load
• Lock switch for disabling parameter and program modification
• Conveniently mounted machine controls on apron - E-Stop, Playback, Start, Stop
• Aux. Controls on apron: work lamp, coolant, and CSS on/off
• Spindle control on apron: forward, reverse, stop, and speed dial
• Auto/Jog feedrate override: 0% to 200%
• User selectable Jog / Feedrate override profiles: Linear or Exponential
• Spindle override: 50% to 150%
• Rapid Traverse override: 12.5%, 25%, 50%, & 100%
• Incremental / continuous jog for X & Z axes
• Intelligent Bi-directional home search for X & Z axes
• Triple electronic handwheels for manual and automatic turning operations (Simultaneously)
• Multiplier switch for handwheel sensitivity: 0.0001”, 0.001”, & 0.01”
• CNC “RUN VERIFY” by Joystick or handwheel for all automatic operations
• Easy one touch X-Z Part Coordinate System settings
Full CNC control of coolant on-off functions via M-codes
• Full CNC control of work light on-off functions via M-codes
• CNC M-Code Controlled Power Contactors for controlling various accessories (Optional)
• Three coordinate systems: Machine, Absolute, & Relative
• Program storage 63 part program storage, 40 meters of paper tape (131 feet)
• Backlash error compensation
• Ballscrew pitch error compensation (from Laser Calibration Data)
• Built-in RS-232 port for loading/unloading of part programs and other CNC data
• 16 Tool Geometry and 16 Tool Wear offsets with tool nose radius compensation
• Self diagnostics with error messages on screen

I appreciate your interest in Flexible Short Run Manaul Operation With CNC Teach!.
We Have This Machine in Stock Machine is being Fully Cleaned & Powered Up
for Videos Next Week.

Special Stock Saving Pricing on Request.

F.O.B: Prep & Loading is Included in Pricing * Export Quotes

Sincerely
Mark Murphy
Mobile 414-520-0843
