2002 Okuma & Howa V80R Single Spindle Vertical Turning Center in Very Good Condition

Murphy Machinery Sales, Inc. is pleased to provide information on (1) 2002 (1) 1999 Okuma & Howa V80R Single Spindle Vertical Turning Center in Very Good Condition, Chuck was Retained by Seller Machine is Available in Stock Ready to Secure & Schedule Shipment on Confirming Orders.!

Okuma & Howa Factory Main Specifications:

Max. Cutting Diameter 31.50" - 39.9"
Max. Swing Diameter 39.37"
Max. Cutting Length 33.07"
Spindle Center Height From Floor 45.28"

Spindle

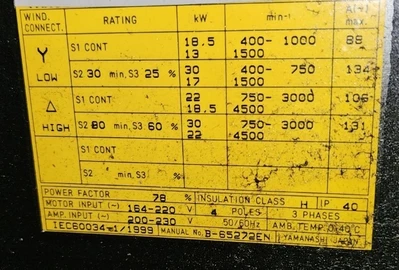

Spindle Motor (FANUC aP60) 40 HP Spindle High Torque Drive Motors
Spindle Speed Range 10 - 1,250 RPM
Max. Chuck Diame Optional Chuck Quotes New Kitagawa 24" 3 Jaw or 31.5" on Request
Spindle Nose A2-11
Front Bearing Diameter 7.87"
Max. Weight on Spindle 1,764 lbs. (must include chuck, parts and jaws)
Spindle Bearings Double Row Cylindrical and Angular Contact
Spindle Speed Selection Direct RPM Programming 2-Speed High-Low Range
Spindle Speed Override 50% - 200%
Speed Range Shift Direct Programmable High-Low Range

Axis Drives

X Axis Travel (FANUC a22/3000i AC 4.0 HP) 18.31"
Z Axis Travel (FANUC a22/3000iB AC 5.0 HP) 33.07"
X Axis Thrust Force 2,950 lbs.
Z Axis Thrust Force 3,170 lbs.
X Axis Ballscrew Diameter/Pitch 1.57"/ 0.47"
Z Axis Ballscrew Diameter/Pitch 1.97"/ 0.47"
X & Z Axis Rapid Traverse Rate 630 IPM
Feedrates 0.00001 - 18.18 IPR
Feedrate Override 0 - 200%
Cooling System for Ballscrews (to minimize expansion) Forced Oil

Turret

Turret Type V12 Station
Max. Number of Tools 12 Tools
Curvic Coupling Diameter 11.42"
Clamping Force 12,590 lbs.
Indexing Time (station to station) 0.7 sec
Standard Turning Tool Size 1.25" x 1.25"
Max. Boring Bar Size 2.0" & 2.5"

Machine Electric 45 KVA (200v) Transformer Installed.

Hydraulic Motor AC 1.5 Kw
Slide way Lubrication Pump Motor AC 20w
Coolant Pump Motor: Turret (SPK2-8/8; 57 psi/ 8 gpm) AC 550w
Coolant Pump Motor: Wash (CHK4-60/2; 14 psi/31.5 gpm) AC 620w
Machine Light AC 100v-20w

Reservoirs:

Hydraulic Tank 10.6 gal
Slideway Lubrication Tank 1.59 gal
Coolant Tank 120 gal

Machine:

Height 13.3' (160.0")
Floor Space Requirement 2,450mm (96") x 2,765 ( 108" )
Weight 26,400 lbs.
Automatic Open/Close Splash Guard Chip Conveyor (Rear Discharge)

Chuck Cylinders – Chuck Open/Close Direction

Change (key switch)
Chuck Open/Close Confirmation (Prox. Switches) Memory Protect Key Switch
One Color Signal Tower Chuck Open/Close (Push Button)
Cycle Completion Alarm & Light Door Interlock
High Pressure Coolant (57 psi) Mounting Plates and Leveling Screws
Multi-tap Transformer Tool/Work Counter on Screen
Spindle Orientation High Pressure Coolant 120 psi

All Ways are induction hardened to Rockwell C55. All Ways are ‘Box’ for maximum rigidity and strength. Okuma machines use a design that allows the Z-Axis drive to be mounted to the bed of the machine. This design guarantees perfect alignment of turret to spindle and increases the rigidity of the Z-Axis itself.

Includes:

1. 40 Hp. High Torque Faunc Spindle Drive Motor
1- Rear Discharge Lift-Up Chip Conveyors Chain Type
1-Auto Doors Each Side of Machine
All Coolant Tanks and all Pumps
All Books & Manuals

Special Reduced Price 2002 Okuma & Howa V80R with All Options....... $ Email Requests

Fanuc 18iTB (9,907 Hrs) Cutting Hours!
Machine 240k New Costs.

TERMS: Machine Payment in Full Prior to Shipment.
F.O.B: Machine can be Prep & Loading with Order on Request.

Delivery: Available Immediate, Subject to Prior Sale.

Terms: Payment in Full Prior to Shipment. We can Secure Machines with Order and Scheduled Payment Planning.

I thank you for your review and consideration and look forward to reviewing your questions and interest on the Okuma & Howa V80R Vertical Turning Center.
