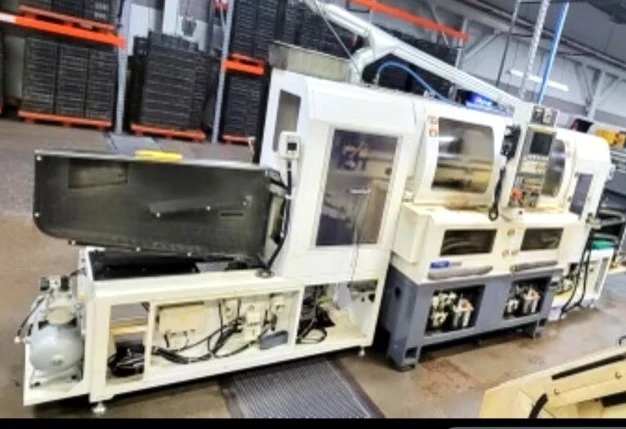

2020 Miyano - Citizen GN-3200W CNC Gantry Loader Automated Twin-Spindle

2020 Miyano - Citizen GN-3200W CNC Automated Twin-Spindle
Gantry Loader Turning Center with Input-Output Conveyor
Systems Loaded with All Turnkey Installed Options.

GN-3200W Features Left and right symmetrical of
linear turret respective independence
simultaneous processing is done. Parallel 2 spindles,
2 linear turret high speed chucker machine
FANUC Instruction Manual Background Editing
Canned Cycle for Drilling Chamfering / Corner R
Constant Surface Speed Control
Custom Macro B
Direct Drawing Dimension Input
Extended Part Program Editing Geometry & Wear
Offset Inch/Metric Conversion Automatic Power
Shut-off Multiple Repetitive Cycle
No. of Tool Offset: 64 Pairs
Part Program Storage Capacity 1 MB (2560m)
Programmable Data Input (G10)

Included With Turnkey Set-Up
Part set-up Programs Tool Holders
Installation of All Accessories
Chip Conveyors

Standard Specifications:
Fanuc 0i-TF
FANUC 2.2/1.5kW Spindle Motor
Maximum 8,000rpm
Transference Detection Device
Pneumatic Unit
Splash Guard Interlock
Cooling Unit
Machine Light
Automatic Lubricating System
Coolant Device
RS-232 Interface

Ordered Required Accessories:

Gantry Loader (2 Saddles)
Work Reverse Unit
Air Blow for Cutting Tools R/L (1 set)
Air Blow for Spindle R/L (1 set)
High Pressure Coolant & Inner Coolant R/L
Automatic Power Shut Off
Total & Multi Counter
Dumper and Duct
Work Reverse Unit
Loader Hand (2)
Loader Panel
Fanuc Instruction Manual (Book Type )

Special Customize
(4) Loader Hand Jaws (Spare)
Electrical Locking Spec (Including Spare Hook) (L & R)
Empty Clamp Prevention (Chuck Double Solenoid) (L & R)
- 1 MPa Spec.
Rising up Chuck Pressure Unit with Tank (with Indicator L & R)
Additional Electrical Equipment (Scott & Ito Spec)
- Empty Clamp Prevention (Chuck Double Solenoid)
- Loader Movement Select Switch
- Additional Keep Relay for Set-up Mode (L & R)
- Input Limitation for Wer Offset (Less than .1mm per time)
(1) Parallelism Loader Hand
IN Hopper (Capacity 150pcs)
- Hopper Lifter, IN Chute
- Work Reverse, Stand Safety Cover
- Air Blow
Measurement System (Outside)
- Work Transfer device, NG Chute
- Stand, Safety Cover
Length Measurement Device (Keyence GT-2)
Work Washing Device
Connection Carrier
Design Costs
Assembly & Adjustment Costs
E Special Collet ID Chuck (2 sets)
(6) High Pressure Coolant Exchange Valve (Cutting Tools)
Macro Program for Measurement
Machine Height-up
Cover for Chip Tank (L & R)
Special Coolant Tank
OUT Stocker (Chute type, Capacity: 80pcs)
Tool Holders:
ID Holder (2 pcs/spindle)
OD Holder (1 pc

Special Top Condition Reduced Pricing: Please Email Request.!
