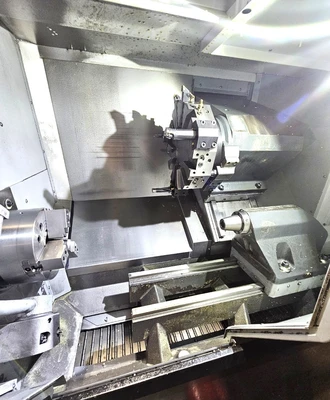

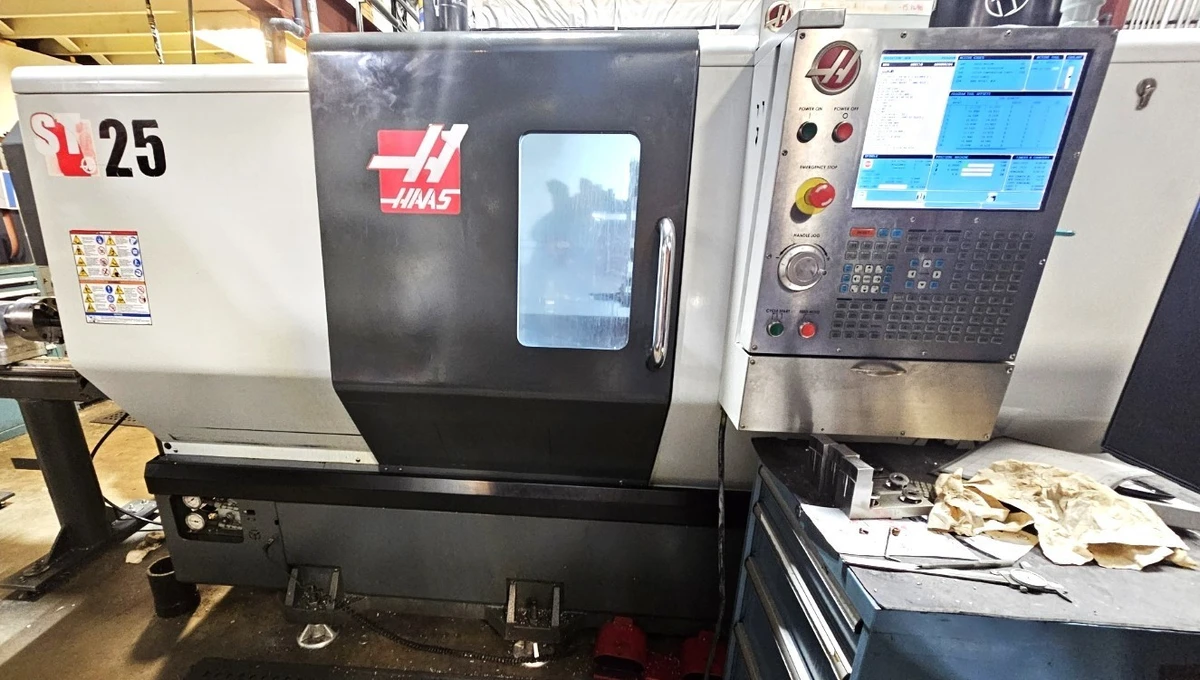

2015 HAAS ST-25 CNC UNIVERSAL TURNING CENTER TAILSTOCK

2015 HAAS ST-25 CNC UNIVERSAL TURNING CENTER
TAILSTOCK, CHIP CONVEYOR, AUTO TOOL SETTER.

MAIN SPECIFICATIONS
Chuck Size 10"-JAW POWER CHUCK
Bar Capacity 3.00"
# Axis 2
Power 30 hp
Max RPM 3,400 RPM
Turning Diameter 15"
Max. Swing 31.75"
Machining Length 22.5"
Turret 12 Station Block Type Turret
Rapid Traverse Rates: 945 IPM

1 GB Programming Memory
Media Display M Code M130
MT #4 Tailstock Taper
Auto Tool Pre setter
Early Power Failure Detection Module
15" LCD Color Monitor: Memory Lock Key switch
RS-232 Interface Port
Programmable Tailstock: Rigid Tapping
Spindle Load Monitor: Very Low Hours
USB Port Interface: User Definable Macros
Ethernet: Haas Drop
All Original Books & Manuals

Special Price:....................... $ Please Email Request.

* Full Multiple Operation Video's All Features.

Machine Fully Installed Ran Low Volume Aluminum.
Shop Just Not Fully Utilizing This Machine.

F.O.B: Machine Full Documented Prep & Loading Available.

TERMS: Payment in Full Prior to Shipment.

I thank you for your review and consideration.

Sincerely,
Mark Murphy
Murphy Machinery

Murphy Machinery
Office Phone: 262-534-4124
Mobile Phone: 414-520-0843
Email: markmurphy@murphymachinery.com
Web Site: murphymachinery.com
