2021 HASS ST-25 CNC TURNING CENTER WITH HASS NEXGEN CNC CONTROL
Have one to sell?
ConditionUsed
1 available

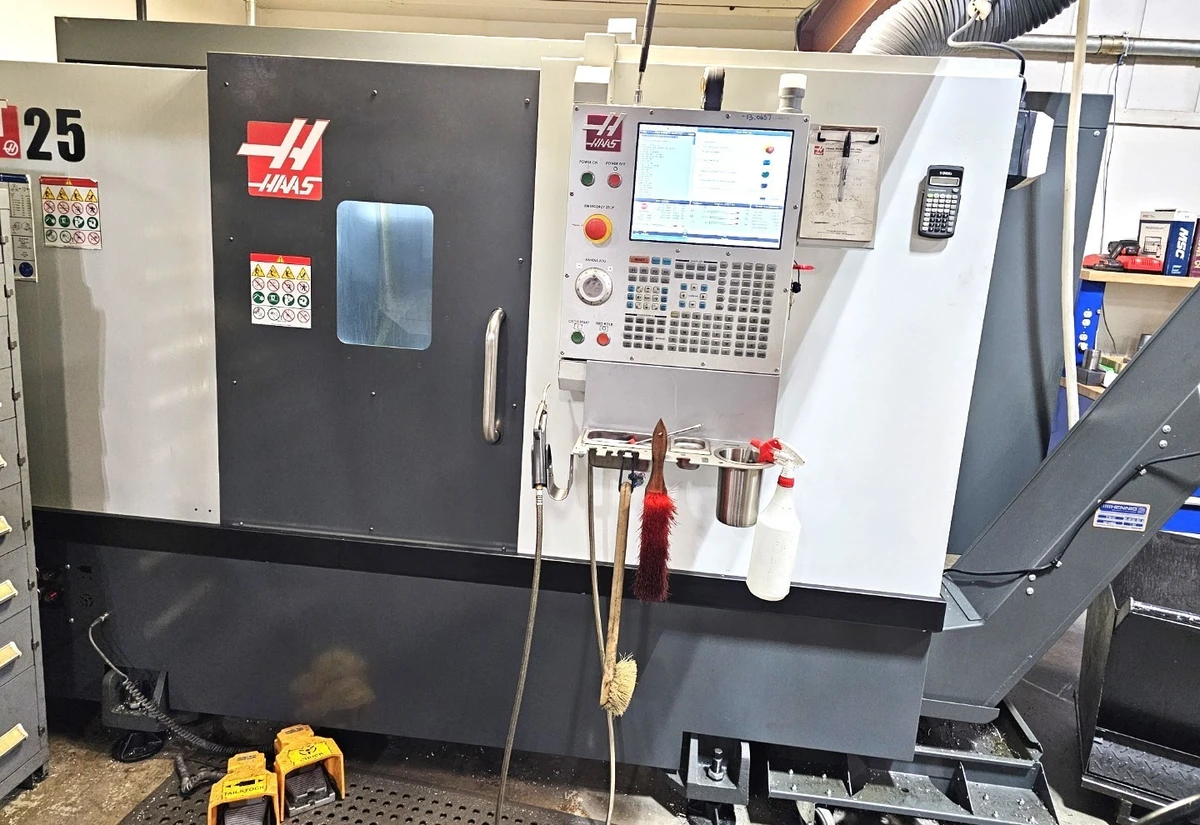

2021 HAAS ST-25 CNC UNIVERSAL TURNING CENTER
TAILSTOCK, CHIP CONVEYOR, AUTO TOOL SETTER.
HASS NEXGEN CNC CONTROL. * ONLY 211 CUTTING HOURS
2021 Hass ST-25 Machine Operation Video Links
2021 Hass ST-25 Spindle Operation Video #1
2021 Hass ST-25 Turret Index Operation Video #2
2021 Hass ST-25 Tailstock Operation Video #3
MAIN SPECIFICATIONS
Chuck Size 10"
Bar Capacity 3"
# Axis 2
Power 30 hp
Max RPM 3,400 RPM
Turning Dia 15"
Swing 31.75"
Machining Length 22.5"
Turret 12 Station Block Type Holders
Rapid Traverse Rates: 945 IPM
1 GB Programming Memory
Haas Connect - Remote Monitoring
Haas Visual Part Programming System:
Media Display M Code M130
MT #4 Tailstock Taper: Wifi for Haas Control Auto Tool Pre Setter
Early Power Failure Detection Module
15" LCD Color Monitor: Memory Lock Key switch
RS-232 Interface Port: Safe Run
Programmable Tailstock: Rigid Tapping
Spindle Load Monitor: Very Low Hours
USB Port Interface: User Definable Macros
Ethernet: Haas Drop
Special Price:....................... $ Please Email Request.
Terms: Payment in Full Prior to Shipment.
F.O.B: Machine Prep & Rigging on Truck Included in Special Price
I thank you for the opportunity to quote and look forward to your questions.
Sincerely,
Mark Murphy
Murphy Machinery
Office: 262-534-4124
Mobile 414-520-0843
www.murphymachinery.com
2021 HAAS ST-25 CNC UNIVERSAL TURNING CENTER
TAILSTOCK, CHIP CONVEYOR, AUTO TOOL SETTER.
HASS NEXGEN CNC CONTROL.
MAIN SPECIFICATIONS
Chuck Size 10"
Bar Capacity 3"
# Axis 2
Power 30 hp
Max RPM 3,400 RPM
Turning Dia 15"
Swing 31.75"
Machining Length 22.5"
Turret 12 Station Block Type Holders
Rapid Traverse Rates: 945 IPM
1 GB Programming Memory
Haas Connect - Remote Monitoring
Haas Visual Part Programming System:
Media Display M Code M130
MT #4 Tailstock Taper: Wifi for Haas Control
Auto Tool Pre Setter
Early Power Failure Detection Module
15" LCD Color Monitor: Memory Lock Key switch
RS-232 Interface Port: Safe Run
Programmable Tailstock: Rigid Tapping
Spindle Load Monitor: Very Low Hours
USB Port Interface: User Definable Macros
Ethernet: Haas Drop
Special Price:.......... $ Please Email Request.
F.O.B: Prep & Loading Neg.
TERMS: Payment in Full Prior to Shipment.
I thank you for your review and consideration.
Sincerely,
Mark Murphy
Murphy Machinery
Murphy Machinery
Office Phone: 262-534-4124
Mobile Phone: 414-520-0843
Email: markmurphy@murphymachinery.com
Web Site: murphymachinery.com
10" 3-Jaw Samchully Power Chuck
Automatic Quick Tool Setter
Side Discharge Chip Conveyor
Oil Skimmer
All Tool Holders
