Excellent 2002 OKUMA & HOWA V80R | CNC Lathes

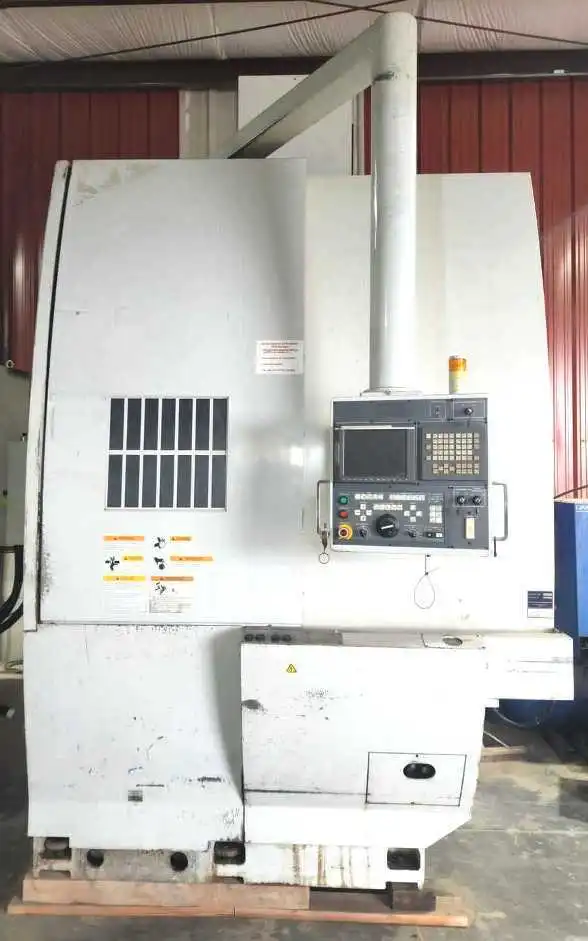

Murphy Machinery is pleased to provide information on New Inspection Photos & Video Link 202 Okuma & Howa V80R Single Spindle Vertical Turning Center in Very Good Condition.

I have Stock on 24" 3-Jaw SMW 630 UBL Pull Back Chuck with A2-11 Package Optional More Information on Request Ready to Install on This Machine on Interest.

Okuma & Howa Factory Main Specifications:

Max. Cutting Diameter 31.50" - 39.9"
Max. Swing Diameter 39.37"
Max. Cutting Length 33.07"
Spindle Center Height from Floor 45.28"

Spindle
Spindle Motor (FANUC aP60) 40 HP Direct Drive Spindle Motor
Spindle Speed Range 10 - 1,250 RPM
Max. Chuck Diameter 24" 3-Jaw Max 36" Diameter
Spindle Nose A2-11
Front Bearing Diameter 7.87"
Max. Weight on Spindle 1,764 lbs.
Spindle Bearings Double Row Cylindrical and Angular Contact
Spindle Speed Selection Direct RPM Programming 2-Speed High-Low Range
Spindle Speed Override 50% - 200%
Speed Range Shift Direct High Low Programming

Axis Drives
X Axis Travel (FANUC a22/3000i AC 4.0 HP) 18.31"
Z Axis Travel (FANUC a22/3000iB AC 5.0 HP) 33.07"
X Axis Thrust Force 2,950 lbs.
Z Axis Thrust Force 3,170 lbs.
X Axis Ball Screw Diameter/Pitch 1.57"/ 0.47"
Z Axis Ball Screw Diameter/Pitch 1.97"/ 0.47"
X & Z Axis Rapid Traverse Rate 630 IPM
Feed rates 0.00001 - 18.18 IPR
Feed rate Override 0 - 200%
Cooling System for Ball screws Forced Oil

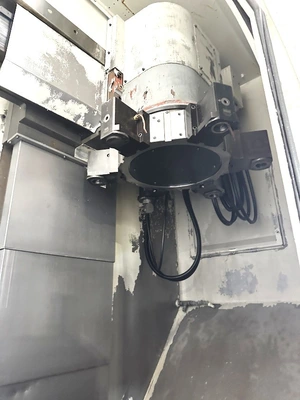

Turret
Turret Type V12
Max. Number of Tools 12
Curvic Coupling Diameter 11.42"
Clamping Force 12,590 lbs.
Indexing Time station to station 0.7 sec
Standard Turning Tool Size 1.25" x 1.25"
Max. Boring Bar Size 2.0" & 2.5"
Machine Electric Multitap Transformer
Hydraulic Motor AC 1.5 Kw
Slide way Lubrication Pump Motor AC 20w
Coolant Pump Motor: Turret (SPK2-8/8; 57 psi/ 8 gpm) AC 550w
Coolant Pump Motor: Wash (CHK4-60/2; 14 psi/31.5 gpm) AC 620w
Height 13.3' (160.0")
Weight 25,000 lbs.
Automatic Open/Close Splash Guard Chip Conveyor (Rear Discharge)
Chuck Open/Close Confirmation Prox. Switches Memory Protect Key Switch
One Color Signal Tower Chuck Open/Close (Push Button)
Cycle Completion Alarm & Light Door Interlock
High Pressure Coolant (57 psi) Mounting Plates and Leveling
Screws
Multi-tap Transformer Tool/Work Counter on Screen
Spindle Orientation High Pressure Coolant 120 psi

All Ways are induction hardened to Rockwell C55. All Ways are ‘Box’ for maximum rigidity and strength.

Okuma machines use a design that allows the Z-Axis drive to be mounted to the bed of the machine. This design guarantees perfect alignment of turret to spindle and increases the rigidity of the Z-Axis itself.

Includes:
1. 40 Hp. Direct Drive High Low Faunc Spindle Drive Motors.
1- Rear Discharge Lift-Up Chip Conveyors Chain Type
1-Auto Doors Each Side of Machine
Coolant Tanks and all Pumps
All Availble Books & Manuals
Dimensions 7' 7" x 13' x 11' 4" 7' 7" x 13' x 11' 4"

Drop Box Video Link
https://www.dropbox.com/scl/fi/ju7w86c8pr3f3j1tj6312/OKUMA-LAR.mp4?dl=0&rlkey=rj57xswsyp4p8y3yeix6no0yd

Special Offered Reduced Price Machine $ Please Email Requests. .

TERMS: Machine Payment in Full Prior to Shipment.
F.O.B: Machine Prep & Rigging is Included in Special Pricing.
Delivery: Available Immediate, Subject to Prior Sale.

I thank you for your review and consideration and look forward to reviewing your questions.
on this Okuma & Howa V80R Single Spindle Opportunity with All Options
