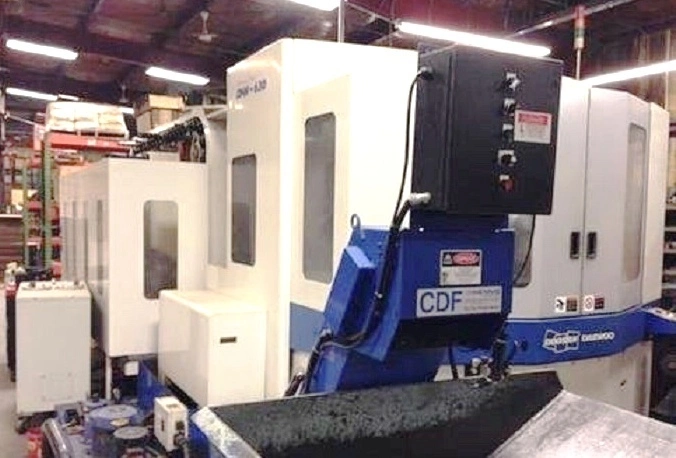

2008 DOOSAN DHM 6300 35 HP Heavy Duty Precision Horizontal Machining Center with Fanuc 18iMB CNC Control and All Options! <br><br>Main Specifications:<br>Table Size L x W 24.8 x 24.8<br>Max. Work piece Weight 2,645 Lbs.<br>Index Table 1 Degree Rotary Table<br>Horse Power 35 Hp. 30 Min Rating<br>Speed Ranges 3- Speed Gear Box Design Heavy Duty Box Way Design <br>6000 RPM Spindle Speed <br>90 Station Automatic Tool Changer <br>Tool Change Time C-to-C 8.50 Sec.<br>Tool to Tool ATC 2.50 sec <br>Max. Tool Length 21.60 Inch<br>Max. Tool Diameter 5.30 Inch <br>with empty adjacent pockets Opt. 9.800<br>Max. Tool Weight 55 Lbs.<br><br>MAIN TRAVELS<br>Travel X-Axis 39.4"<br>Travel Y-Axis 31.5"<br>Travel Z-Axis 33.5" <br>Spindle Nose To Table Edge 39.4"<br>Spindle To Table Center 5.9"<br>Rapid Traverse 945 ipm<br>Rapid Traverse 1,260 ipm<br>WEIGHTS AND MEASURES<br>Machine Dimensions<br>Length 275" x Width 174" x Height 120" <br>Machine Weight 41,887 Lbs.<br><br>Equipped With:<br>Rotary Table 1 Degree Rotary Table<br>Thru Spindle Coolant<br>High Pressure Pump 300 PSI<br>Lift Up Chip Conveyor<br><br>2008 Doosan HM-6300 CNC Horizontal Machining Center Video Links <br>1. Automatic Pallet Changer Operation Video Link<br>2. Automatic Tool Changer Operation Video Link<br>3 Pallet Index Rotation Operation Video Link<br><br>Machine has very low cutting hours in 5,537<br>and is in perfect running Condition. <br><br><br>* More Photos and Video Links! <br><br>Sincerely,
