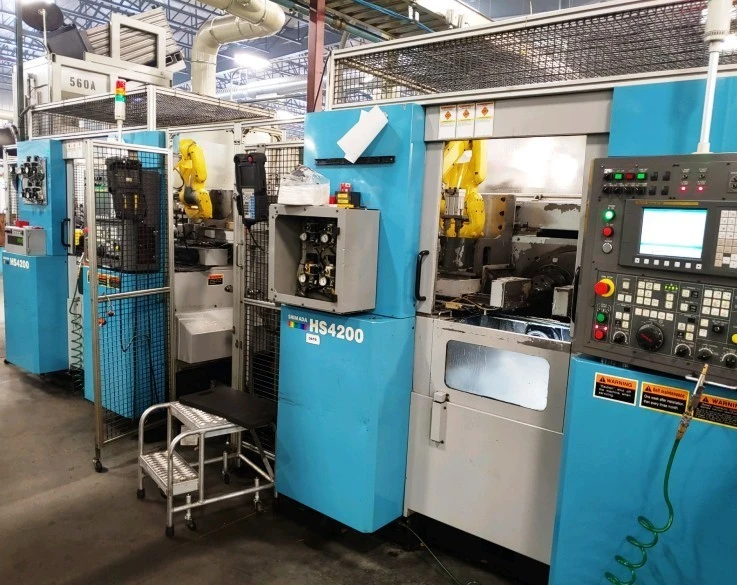

2013 Kitako HS-4200 with Fanuc OiTD CNC Control and Fanuc Dual Robot Integrated Installed Robotic Part Loaders and All Input-Output Conveyors Systems and Flexible Post Process Gauging Systems and all Ordered New Options Installed.<br><br>Main Specifications<br>Model HS-4200<br>Max. Turning Diameter and Length 7.8" x 4" <br>Chuck Size CNC Collets or 8" x 4 Units Installed<br>Spindle Nose A2-6<br>Spindle Motor 15HP / 20HP<br>Maximum Spindle Speed 4,500 rpm <br>Carrier Index 1.5 seconds / 180<br>X-Axis Travel 6.3"<br>Z-Axis Travel 9.8"<br>Rapid Traverse 945 IPM (X), 1181 IPM (Z)<br>Turret Gang Type Slide for Mutiple Tools & Cap. Live Tooling on Gang Slide<br>Turret Index 0.3 second per Station<br>2 Fanuc Robot Loader for Carrier Loading System<br>Maximum Part Size (diameter x length) 5.9" x 3.9" <br>Maximum Part Weight 6.6 lbs x 2<br>Feed Rates (X/Y/Z) 6,693 IPM / 4,724 IPM / 2,165 IPM<br>Totally Enclosed Splash Guards<br>Door Interlock<br>Hydraulic Circuit Alarm Indicator<br>Production Counter<br>Maintenance Counter<br>Tool Counter<br>Coolant Equipment<br>Rear Discharge Chip Conveyer<br>Foot Switch<br>Alarm Message Function<br>Lubrication Circuit Alarm Indicator<br>Servo Motor Driven Carrier (2 Second Index Time)<br>Tool Holder for 8 Station Drum<br><br>Special Design Features <br><br>Load While Machining Four spindles, generally partnered in pairs, are mounted in a square pattern in a large cylindrical carrier drum.<br>When the carrier is indexed 180 degrees, two spindles/parts move from the loading zone to the machining zone. At the same time, the other two spindles/parts move from the machining zone to the loading zone. As two parts are being machined, two new parts are being loaded. This continuous indexing is similar to that of a pallet changer on a machining center.<br><br>*Unique Four-Spindle, Four-Axes Flexibility<br> The spindles, slides, and turrets work independently and simultaneously for “operation matching” flexibility: AA/AA, AB/AB, AA/BB, A/B/C/D.<br><br>*Dependable, Close Tolerance Performance<br><br>Spindle rigidity and positioning are ensured by the use of a large diameter, precision-toothed curvic coupling.<br>The solid headstock, bed, and box shaped ways, over-sized ball-screws and servo motors, and robust turrets are all designed to perform heavy cutting with impressive chip removal rates.<br><br>Ease of Loading Since the spindles in the loading zone are outside of the machine, there is unrestricted access, allowing for easy manual, robotic, or gantry loading.<br><br>*Small Floor Space Requirements<br> <br>Kitako HS-4200 Factory Demo Operation Full View!<br><br>https://youtu.be/3WakZBQTpjs<br> <br>(3) Installed Kitako HS-4200 Operation Full View <br><br>Videos Links http://tbf.me/a/6ldLu<br> <br>Special Price:$Please Email or Call Neg. (1-2) Machines!. <br><br>Machine is Fully Installed for Inspection and Immediate Release on Orders!<br><br>F.O.B: Machine Pricing on factory prep for shipment and Machine Loading on Request.<br><br>Terms: Payment in Full Prior to Shipment.<br> <br>I thank you for your review and consideration and look forward to further questions.<br><br>Sincerely,<br>Mark V. Murphy<br>Murphy Machinery Sales, Inc.<br><br>
