Used 2010 KINGSTON CHK-3000 CNC | CNC Lathes

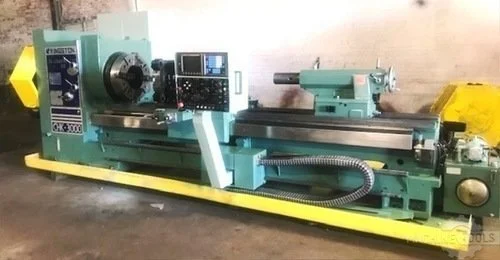

2001 Kingston CNC Oil Country Engine Lathe Model CHK-3000, Heavy Duty Engine Lathe With 30" Swing x 120" Centers 12.5" Hole Thru Spindle, 2 - 24" - 4 Jaw Chucks, Steady Rest, Taper Attachment, 4 Way Rapid Traverse, Hydraulic Braking System, 2-Speed Drive Tailstock Quill, 2 - Chip Pans. * Auto Re-Tract Thread Cutting Features.
Fanuc OT-CNC Control

Main Specifications
Capacity 30" x 120"
Swing Over Bed 30"
Distance Between Centers 120"
Swing Over Cross Slide 20-1/2"
Hole Thru Spindle 12-1/2"
Spindle Nose A2-20
Spindle Speeds 5 to 300 RPM
Taper of Spindle Bore & Center 3/4" Taper per Foot
Bed Width 22"
Compound Slide Travel 9.45"
Spindle Taper MT #6
Cross Slide Travel 21.25"
Tailstock Quill Travel 11-3/4"
Tailstock Quill Diameter 5.125"
Inch Threads (50) 1 - 28 TPI
Metric Threads (41) 1 - 28 MM
Modular Pitches 0.5 to 7 m
Diametrical Threads 4 to 56 D.P.
Horsepower 20 H.P.
Dimensions (W x D x H) 226" x 74" x 75"
Weight 18,000 Lbs.

EQUIPPED WITH:

Fanuc OT CNC Control
Dual 24" - 4 Jaw Chucks Steady Rest
Taper Attachment
4 Way Rapid Traverse
Hydraulic Braking System
2-Speed Drive Tailstock Quill
2 - Chip Pans
12.5" Hole Thru Spindle Digital Readout Steady Rests

* Auto Thread Re-Track Option is Installed on This Machine.

New Replacement Cost Over $250,000

New Factory Specification:
Kingston New Factory Overview

The CHK and HG models are the heavyweight champs of Kingston's line. Available in 12.5” and 14.7” spindle bores, respectively, the HK and HG thrive under the most demanding of work conditions. The HK (available in 30” or 34” swing) consistently leads the industry in heavy-duty oil country applications—with the shorter 30” swing being the most popular for its lower center of gravity and maximum stability during heavy cutting—while the larger HG is available in swing sizes up to 40”. These models are equipped with a powerful 20 HP Mitsubishi inverter-driven main motor (6P) and a hydraulic braking system, with a semi-automatic air threading attachment (complete with taper) as a popular option. Kingston's commitment to building powerful, big bore, heavy duty machines is legendary; the HK and HG are Kingston’s maximal efforts showcasing our largest spindle bore sizes, heaviest loading capacity, and massive amounts of torque. The HK and HG come front- and-rear-chuck ready (A2-20 spindle nose), with lengths from 120” to 280” between centers.
Standard Features

20 HP, 230V (only), 3 Phase, 6P Motor and Electrics Including Motor Drive Arrangement with Inverter & Hydraulic Brake
Spindle Bore: HK 12.5” / HG 14.7”
Spindle Nose: ASA-A2-20
16 Spindle Speeds: 5 – 300 RPM
Hydraulic Brake System
4-Way Rapid Traverse
T-Slot on Tool Slide
Hardened and Ground Bed and Cross Slide Ways
2-Speed Drive Tailstock Quill
Coolant System with Pump and Piping
Pull Drawer Chip (Coolant) Pan
Rear Chuck Adapter Installed
Front & Rear Chuck Guards

Special Offered Reduced Price:............... $ Please Email Request.

F.O.B: Machine Prep & Rigging Price on Request.

Machine is in our showroom Under Power for Inspection on Interest.

I thank you for your interest Kingston Lathes and look forward to your questions.
