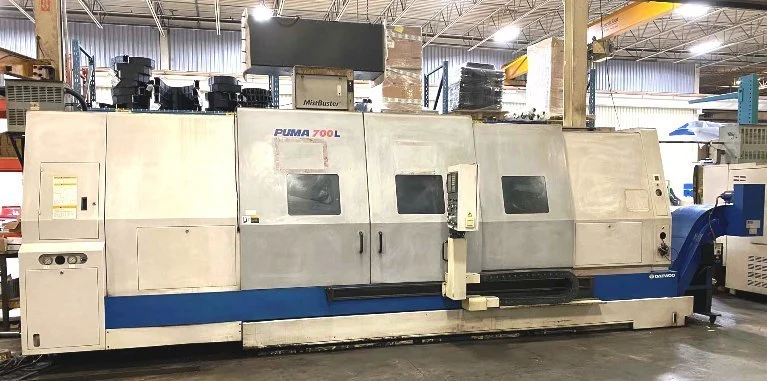

2001 DAEWOO PUMA 700L CNC UNIVERSAL BIG BORE 7.12" THRU HOLE TURNING CENTER 40" SWING, 137" CENTERS WITH HYDRAULIC STEADY REST SLU 1.77" to 11.8"
Have one to sell?
ConditionUsed
1 available
2001 DAEWOO PUMA 700L CNC UNIVERSAL BIG BORE 7.12" THRU HOLE TURNING CENTER 40" SWING, 137" CENTERS WITH HYDRAULIC STEADY REST SLU 1.77" to 11.8"
FULLY INSTALLED FOR INSPECTION
* CUT MOSTLY ALUMINUM!.
Main Specifications:
Maximum Swing Over bed 40.6''
Max. Swing Over Cross Slide 31.5''
Max. Turning Diameter 35.4''
Distance Between Centers 137"
Spindle Bore Diameter 7.12''
Spindle Nose A1-15''
Spindle Speeds 1500 RPM
Gear Ranges 2
Spindle Torque 8,116 Ft. Lbs.
Main Motor 50 HP
X - Axis Travel 18.5"
Z - Axis Travel 127"
Rapid Traverse X, Z 472, 393 IPM
Turret Configuration 12 Station
Programable T. S. Body Standard
Tailstock Travel 123.4''
Tailstock Quill Travel 7.9"
Tailstock Quill Diameter 7.1"
Machine Weight 44,000 LBS.
FANUC 18iT SERIES CNC CONTROL AND i SERIES
20" 3-JAW HYDRAULIC BIG-BORE CHUCK WITH 6.5 BORE
PROGRAMMABLE STEADY REST WITH POSITIONING
STEADY REST SLU 1.77" to 11.8" Diameter Round Capacity
SIDE DISCHARGE CHIP CONVEYOR
