BROTHER TC-R2B
Have one to sell?
ConditionUsed
1 available

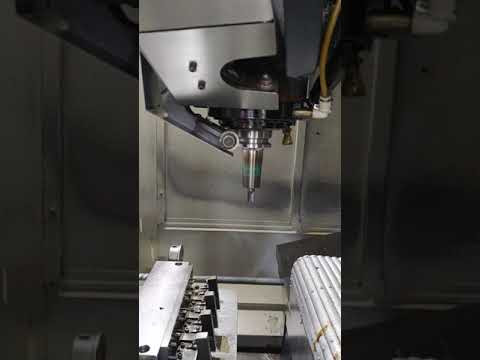

Murphy Machinery is pleased to offer 1-2 2012 Brother TC-R2B Drilling & Tapping Centers with 180 degree table and Full 4-Axis CNC BOO Control and all Standard Features. Machines will have 4th Axis Boards & Drives & All Cables Included and we can offer (1) Optional Installed Nikken CNC Rotary Table in Quote. 2012 Brother TC-R2D CNC High Speed Vertical Machining Center w/ APC. Machine #206 *New Operation Video Links! www.transferbigfiles.com http://tbf.me/a/Bn5gRa
Murphy Machinery is pleased to offer (2) 2012 Brother TC-R2B Drilling & Tapping Centers with 2-180 Degree Rotary Pallet Tables and 4-Axis Interfaced with CNC BOO Control and all Standard Features. Machines have 4th Axis Boards & Drives & All Cables Included and Optional (1) Installed Nikken Forth Axis Rotary Table.
Pallet Table Size x 180 Degrees A-B Sides
Table size 23.6" x 16.5" (each side)
Table Capacity 256 lbs (one side)
Table position time 2.9 S/180 deg.
X-axis travel 16.5"
Y-axis travel 12.8"
Z-axis travel 12"
X-axis Rapid Feedrate 1969 ipm
Y-axis Rapid Feedrate 1969 ipm
Z-axis Rapid Feedrate 1969 ipm
Cutting Rate 394 (X, Y) 787 (Z)
Spindle Speed 10,000 IPM
Spindle Taper CAT-30 Big Plus
Main Motor 26.5 /10 Minute Duty Rate High Torque Motors
Coolant Thru Spindle with 300 PSI Pumps.
Drum Type 12 Station High Speed Automatic Toolchanger
High Torque 26.5 15min Spindle Motor Full Power
Cat 30 Taper Big Plus Spindle Tooling Package
PLC Function
Shower Gun
Mist Collector
Work Light Kit (2-light) w/brackets
Manual Pulse Generator
Indicator light (3) stage
Chip Conveyor Hinge Type
Hydraulic System w/plumbing 3,000 PSI
High Pressure Coolant Pumps
Tool Breakage Sensors Options
Part Present Air Sensing Options
Special Price $ *Please Email or Call 2 Identical Machines.
I thank you and look forward to providing additional information on Request. The Machines are Fully Installed Ready to Inspect in fully Installed. *Very Low Hours Both Machines.
Sincerely,
Mark V. Murphy
