KIA KT-21
Have one to sell?
ConditionUsed
1 available

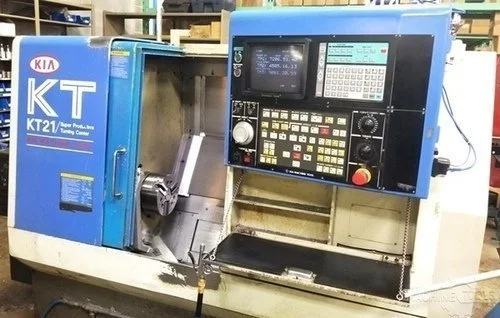

1994 Kia KT-21 CNC Turning Center with Tail stock Yasnac LX-3 CNC Control and All Options! . Service on Yasnac Spindle Drive Board Required. Yasnac Aftermarket Parts Quote in Process.! Service can be Contracted to Repair Prior to Shipment. *Full Details on Part Model & Quote on Request. Main Specifications: Swing:.................................... 17.7" Bar Capacity......................... 2.03" Spindle Bore:........................ 2.32" Max RPM:...………………..……… 5000 RPM's Max Turn Length:................. 15.4" Max Turn Diameter:.............. 8.2" Standard Holders! Chuck Size:...............….......... 8" 3-Jaw Hydraulic Opt. 10" Cap. Spindle Nose........................ A2-6 Spindle Motor...................... 15/20 HP Turret Stations .................... 10 Machine Weight.................. 9,000 Lbs.
1994 Kia KT-21 CNC Turning Center with Tail stock Yasnac LX-3 CNC Control and All Options!
Main Specifications:
Swing:.................................... 17.7"
Bar Capacity......................... 2.03"
Spindle Bore:........................ 2.32"
Max RPM:...………………..……… 5000 RPM's
Max Turn Length:................. 15.4"
Max Turn Diameter:.............. 8.2" Standard Holders!
Chuck Size:...............….......... 8" 3-Jaw Hydraulic Opt. 10" Cap.
Spindle Nose........................ A2-6
Spindle Motor...................... 15/20 HP
Turret Stations .................... 10
Machine Weight.................. 9,000 Lbs.
Kitagawa 8" 3-Jaw Chuck
Auto Quick Tool Setter Unit
All Available Tool Holders
Turbo Side Discharge Chip Conveyor
All Available Books & Manuals
* Note Original Owner Very Light Cutting Applications
Special Price: ............……………... $ Please Email or Call!
Thank You!
Sincerely,
Mark V. Murphy
