WOTAN Cutmax 2
Have one to sell?
ConditionUsed
1 available

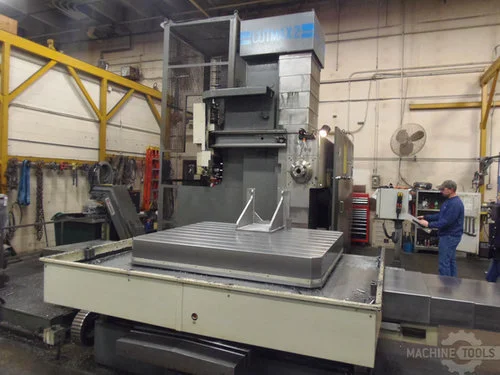

1999 Wotan Cut Max 2 CNC Table Type Boring Mill with Heidenhain 426 CNC Control * Machine was Installed Fully Operational and Moved to New Building and Offered a Excellent Pricing. *Full Re-Installation Support Available!
1999 Wotan Cut Max 2 CNC Table Type Boring Mill with Heidenhain 426 CNC Control * Machine was Installed Fully Operational and Moved to New Building and Offered a Excellent Pricing in as in condition and service tech support on re-installation or neg to talk on Pricing to be Re-installed Prior to Inspection & Shipment. * Please Email Questions for Review.
Main Specifications
Table Size with (B-Axis) 63" x 55"
Table Weight Capacity 13,500 Lbs
Table Indexing 0.001 Degree
Table Rotation Speed 0 - 2.5 RPM
X Axis Travel - Cross Travel 71"
Y Axis Travel - Vertical Travel 67"
Z Axis Travel - Spindle Travel 59"
W Axis Travel - Saddle Travel 23.6"
Spindle Bar Diameter 4.75"
Spindle Taper 50 Taper
Spindle Speeds 20 - 3,000 RPM
Spindle Drive 40 HP
Number of Tool Positions 60 Station ATC
Rapid Traverse Rates 393 IPM
Feed Range X, Y, W / Z .04 - 196 IPM / 236 IPM
Built in B-Axis Rotary Table
60 Station Toolchanger
Conversational and G Code Programming
Rigid Tapping
Helical Interplation
Ethernet
Background Editing
Chip Conveyor
Ballscrews on All Axis'
Hardened Ways
Steel Way Covers
AC Controlled Spindle & Motor
All Available Manuals
