AMERICAN TOOL WORKS 4025W
Engine Lathes
Murphy Machinery is Pleased to offer the Following in Shop Under power American 40-25W CNC Turning for your review and consideration. 10-10 Condition with All Options with Programing Computer DNC Station New spindle drive, Axis drives and motors, Full Retrofit Documentation and Manuals and In-House CNC Retrofit Support on Installation & Training Available. American 40" Swing x 120" Centers Wide Bed Model for Rigidity CNC Lathe Turning Center Machine Fully Refurbished and Retrofitted with 2012 Machine Mate CNC Control Refurbished and Retrofitted Window Based PC with Siemens Electronics Machine Ways Fully Professional Re-Ground Ways and Ball Screws Prior to Retrofitting with New CNC Control.
Murphy Machinery is Pleased to offer the Following in Shop Under power American 40-25W CNC Turning for your review and consideration. 10-10 Condition with All Options with Programing Computer DNC Station New spindle drive, Axis drives and motors, Full Retrofit Documentation and Manuals and In-House CNC Retrofit Support on Installation & Training Available.
American 40" Swing x 120" Centers Wide Bed Model for Rigidity CNC Lathe Turning Center Machine Fully Refurbished and Retrofitted with 2012 Machine Mate CNC Control Refurbished and Retrofitted Window Based PC with Siemens Electronics
Machine Ways Fully Professional Re-Ground Ways and Ball Screws Prior to Retrofitting with New CNC Control.
Main Specifications
Swing Over Ways: 40"
Swing Over Cross Slide 25"
Width Between Ways 22"
Center Distance 120"
Spindle Nose A2-20
Chuck Size 24" 3-Jaw Big Bore
Spindle Thru Hole 4-1/8"
Spindle Speeds 8 To 600 Rpm's
Front Turret Horizontal 6 Position
Rapid Traverse 200 I.P.M.
Machine Main Motor 50 Hp.
Machine Weight 28,500 Lbs.
Tail Stock Quill Diameter 6"
Tail Stock Quill Travel 20"
Tail Stock Quill Taper # 5 Morse
Tail Stock Travel Power
Steady Rest 15" Capacity
Machine Chip Pan & Coolant
Hardened & Ground Ways
Hardened & Ground Ball Screws
Standard 15" 3-Point Steady Rest Included
Loaded with Full Cabinet of Tooling and Accessories
2- Extra 4-Square Tool Posts and Octagon Installed on Machine.
www.transferbigfiles.com *Video Links!

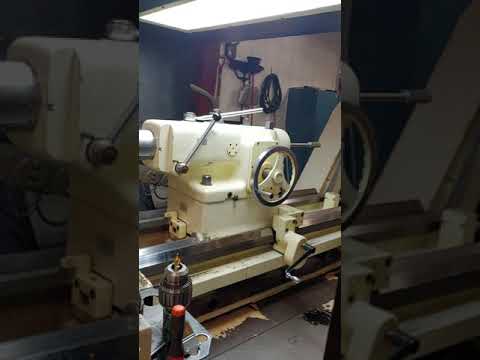

American 40-25 120" Centers CNC Operational Videos!
Cut Paste to Browser!
http://tbf.me/a/LEvCS
Special Reduced Price:.................$ Please Email or Call.
Note: New Ordered SMW Hydraulic Steady Rest Priced as Optional SMW-AutoBlok 3-Point Hydraulic Steady Rest 15" Diameter Installed Option
F.O.B: Prep & Loading Required Local Support Available Technician!.
TERMS: Payment in Full Prior to Shipment.
I thank you for your review and please advise any technical questions!
F.O.B: Prep & Loading Required Local Support Technician.
We can Offer Installation & Training Support on Request.
TERMS: Payment in Full Prior to Shipment.
I thank you for your review and please advise any technical questions or additional Information on Retrofit Control!
Sincerely,
Mark V. Murphy
