KINGSTON HK-3000
Have one to sell?
ConditionUsed
1 available

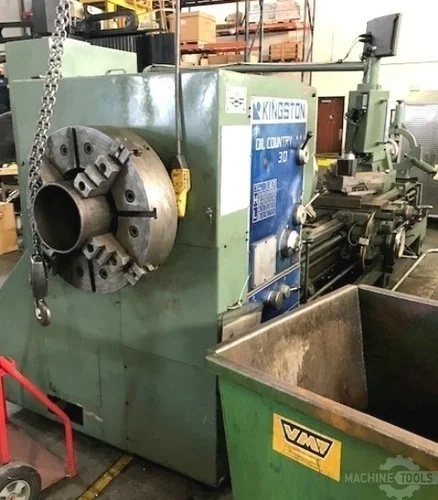

Kingston Oil Country Engine Lathe Model HK-3000, Heavy Duty Engine Lathe With 30" Swing x 120" Centers, 12.5" Hole Thru Spindle, 2 - 24" - 4 Jaw Chucks, Steady Rest, Taper Attachment, 4 Way Rapid Hydraulic Braking System, 2-Speed Drive Tailstock Quill, 2 - Chip Pans. * Confirming Mfg. Year !. Estimated 2002
Kingston Oil Country Engine Lathe Model HK-3000, Heavy Duty Engine Lathe With 30" Swing x 120" Centers, 12.5" Hole Thru Spindle, 2 - 24" - 4 Jaw Chucks, Steady Rest, Taper Attachment, 4 Way Rapid Hydraulic Braking System, 2-Speed Drive Tailstock Quill, 2 - Chip Pans. * Confirming Mfg. Year !.
Main Specifications
Capacity 30" x 120"
Swing Over Bed 30"
Distance Between Centers 120"
Swing Over Cross Slide 20-1/2"
Hole Thru Spindle 12-1/2"
Spindle Nose A2-20
Spindle Speeds 5 to 300 RPM
Taper of Spindle Bore & Center 3/4"
Taper per Foot Bed Width 22"
Compound Slide Travel 9.45"
Spindle Taper MT #6
Cross Slide Travel 21.25"
Tailstock Quill Travel 11-3/4"
Tailstock Quill Diameter 5.125"
Inch Threads (50) 1 - 28 TPI
Metric Threads (41) 1 - 28 MM
Modular Pitches 0.5 to 7 m
Diametrical Threads 4 to 56 D.P.
Horsepower 20 H.P.
Dimensions (W x D x H) 226" x 74" x 75"
Weight 18,000 Lbs.
Dual 24" - 4 Jaw Chucks Steady Rest Taper Attachment 4 Way Rapid Traverse Hydraulic Braking System 2-Speed Drive Tailstock Quill 2 - Chip Pans 12.5" Hole Thru Spindle Digital Readout Steady Rests New Replacement Cost Over $150,000 New Factory Specification: Kingston New Factory Overview The HK and HG models are the heavyweight champs of Kingston's manual line. Available in 12.5” and 14.7” spindle bores, respectively, the HK and HG thrive under the most demanding of work conditions. The HK (available in 30” or 34” swing)
Consistently leads the industry in heavy-duty oil country applications—with the shorter 30” swing being the most popular for its lower center of gravity and maximum stability during heavy cutting—while the larger HG is available in swing sizes Up to 40”. These models are equipped with a powerful 20 HP Mitsubishi inverter-driven main motor (6P) and a hydraulic braking system, with a semi-automatic air threading attachment (complete with taper) as a popular option.
Chuck ready (A2-20 spindle nose), Spindle Bore: HK 12.5”
Spindle Nose: ASA-A2-20 16
Spindle Speeds: 5 – 300 RPM
Hydraulic Brake System 4-Way Rapid Traverse T-Slot on Tool Slide Hardened and Ground Bed and Cross Slide Ways 2-Speed Drive Tailstock Quill
Coolant System with Pump and Piping
Pull Drawer Chip (Coolant) Pan
Rear Chuck Adapter Installed
Front & Rear Chuck Guards
Special Offered Price:.....$ Neg. in Plant Accepting Offers!
Machine is Fully Installed for Inspection
