GIDDINGS & LEWIS B-8 CNC 60" TABLE VTL Ready Prep 1-2 Weeks Depere WI.
Have one to sell?
ConditionUsed
1 available
Leo & Co.
Please Review Export Increased Total $17,165.
Really Stuck as in Warehouse Packaging Near
Port. I am really in Shock on their Revisions.

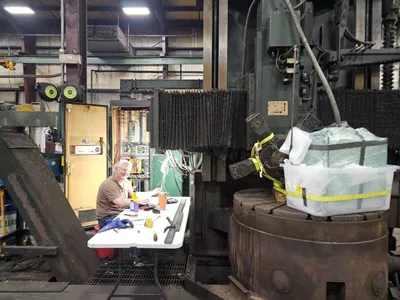

I am pleased to show the Project Photos on Machine and

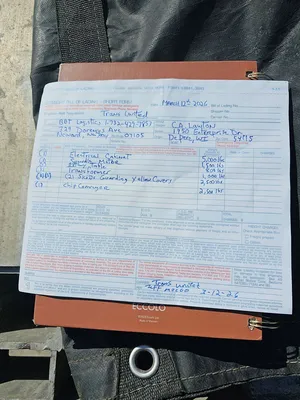

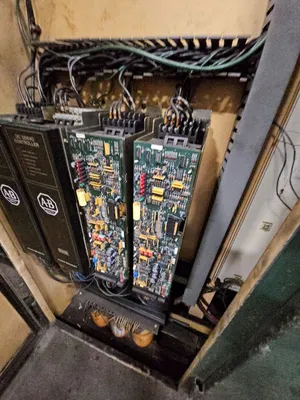

Confirming Invoice PDFs on Machine Electrical Work and Machine Prep for Shipment Costs, Trucking Costs to port in Newark, New Jersey and will send email showing differences in new added Costs over Budget Pricing are Very Expensive Costs.

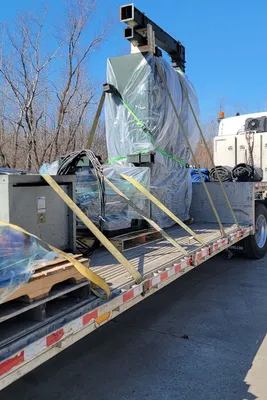

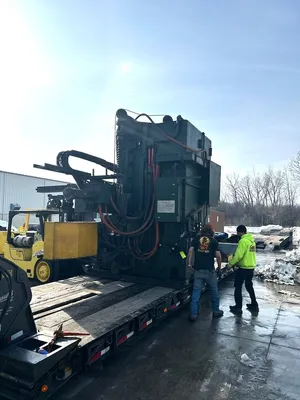

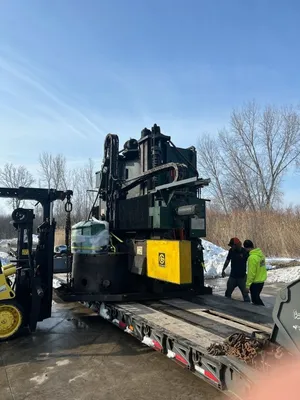

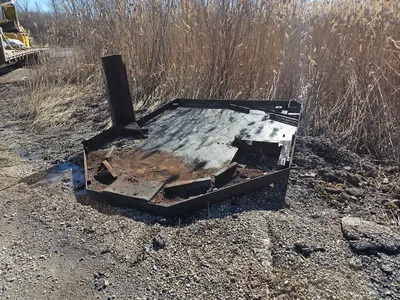

The Chip Pan is Very Important is Shipping Under Machine
of Flat Rack Increase Trucking Height but Important on Re-Assembly on All Lower Front Guard.

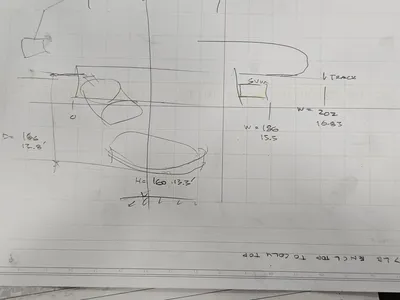

I will Send a Summary Email and Review prior to Sending Copy to Your Main Email on Thursday. Final Payment to Krish Logistics New Invoices on Added Costs on Machine Weights and Over Height Charges attached revised costs Dimensions from Early Quotations. Email to Carlos on Dimensions on Truck from Port will Send Thursday.

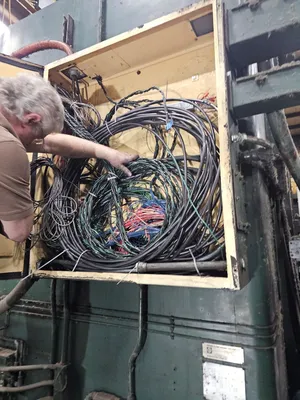

I have worked on and help pack machine and with my service contact on the project start to finish!
Sincerely,
Mark Murphy

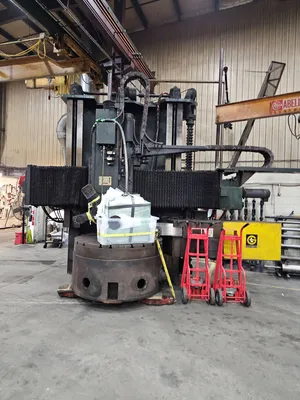

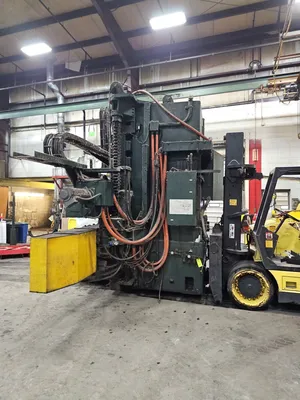

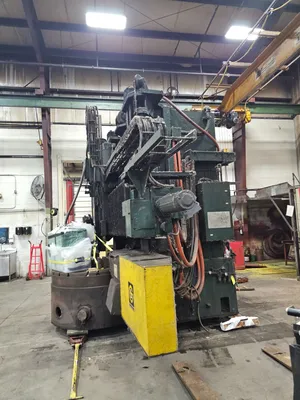

Murphy Machinery Sales, Inc. is pleased to offer this in plant Under Power Rebuilt 1989 G & L B-8 60" Table CNC VTL Re-manufactured & Retro-Fitted Fanuc 11TTF CNC 4-Axis Control and Installed With All Options!. * Fully Programmable Side Head Installed. *Original Iron is 1976. G & L Model B-8.
Main Specifications:
Table Size - 60" Combination Table.
Max O.D. swing - with side head - 66"
Max O.D. swing - above side head - 72"
Max clearance from facing tool tip in
pentagon to top of table - 70" this is an absolute dim.
Max clearance from facing tool tip in
pentagon to top of jaws - 64" this is an absolute dim.
Chuck type - (4) independent jaws
Table speeds - 3 - 68 RPM + 12 - 272 RPM
One head on rail - Pentagon turret
Side head - Square turret
Travels:
Pentagon turret, x axis - full rail
z axis - 36"
Side head u axis - 57.62
w axis - 25.5
Feeds:
Rapid traverse (all 4 axes) - 120- IPM
Cutting feed rate (all 4 axes) - .01" - .100"/REV
Ball screw size (all 4 axes) - 3" diameter
Electrics - 460/3/60
Drive motor - 60hp
CNC Control - Fanuc 11TTF, 4 axis simultaneous control,
pendant mount
Lube system - Trabon
Ways - Hardened and ground
Enductosyn scales
Chip conveyor
Accuracies - .0005"/ft - .001" full stroke; repeatability .0003"
Original year built - 1976 Re-manufactured with new Fanuc 11-TT-F 4-Axis, Loaded with All Tool holders Full Tool Crib
Conversational FAPT CNC Control
Special Reduced Machine Price:....$ Please Email or Call.
F.O.B: In Plant for Inspection Fully Installed Under Power!
I thank you and look forward to reviewing any questions and interest.
Sincerely,
Mark Murphy
