MURATEC MW200G

Description

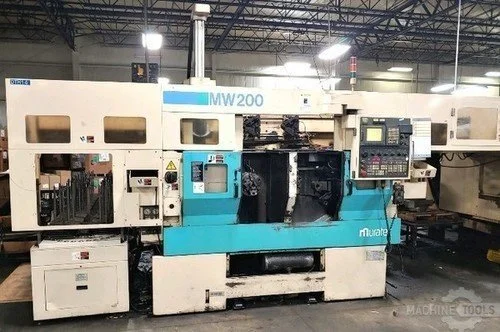

(1) 1999 MURATEC MW-200G CNC TWIN SPINDLE TURNING CENTER WITH OVERHEAD GANTRY LOADER AND (20) STATION PALLET HEAVY DUTY STOCKER FEEDER TABLE AND 2ND OPERATION (1) 1999 MURATEC MS-100G CNC SINGLE SPINDLE WITH FANUC 18iT CNC CONTROL AND ALL OPTIONS AND ACCESSORIES FOR PRODUCTION. This is Muratec's Best Selling Job Shop Machine and is in Low Hours Condition with 3- 10" 3-Jaw UBL Pull Back Chucks 30 HP. 2-Speed Geared Spindles, Full Box Way Design, Murata Overhead Gantry Loader Machine. Versatile for larger Parts and (2)16 Lbs. Parts on Gantry Loader or Max (1) Part 36 Lbs. Overhead Gantry Part Weight Capacity. Muratec has Special Patented W/S Turret Bar Design for Casting Production Turning and Accuracy. Two 10-Station Turrets with High Speed Index, Fanuc 31iT CNC 4-Axis control, Fanuc @AC High Torque Servo Drives Motors, Spindle Motors, 35- 3500 rpm max. (2) 10" 3-Jaw UBL Pull Back Chucks MW-200G (2) 10" Pull Back Chucks (1) 10" Pull Back Muratec MS-100G, Special M-Code Air Blast & Coolant Thru Chuck Center Option Installed. Muratec Factory Standard Options Each Machine Included: (1) MW-200G High Speed Muratec Overhead Gantry Loader / MS-100G Overhead Gantry Loader (2) High-Torque @P 30 HP. 2-Spindle Motors MW-200G (1) @P 30 HP. MS-100G Spindle Motor (2) PSI High Pressure Coolant Pumps Each Machine (2) Air and Coolant Mixing Blow Through Spindle Coupling (1) Work Clamp Sensor (1) Work Location Confirmation Sensor (2) Foot Switches for Chuck Operation External Work Number Search Auto Tool Shift Function Tool Setter (both sides) Total Counter Daily Counter Check Counter (2) Spindle Load Meters (2) Spindle Orientation(4 position) Signal Tower (red/yellow/green) Part Program Storage & Edit (40m) 125 Registrable Programs Custom-macro B Tool Geometry and Wear Offsets Tool Offset Value Program Input Tool Nose Radius Compensation Run Hour Display Inch/Metric Conversion (2) Hydraulic Chuck Cylinders Tool Monitor (2) -20 Pallet Heavy Duty Stocker Feeder Tables All Available Tool Holders / Multi-Tap Transformers GANTRY LOADER AND TURN-A- ROUND STATION CHUCK JAWS: • Factory Tool Holder Package with Machines Special Reduced Price: 1999 MURATEC MW-200G / 1999 Muratec MS-100G: $ Separate or Pair Price on Request. Machines have Only MW-200G 8,491 / MS-100G 8,250 Cutting Hours * New Ordered Cost $400,000 With All Options! * Complete Training and Installation Available on Request. * Experience Serviceman available to contract. * Full Costs on Prep & Shipping Rate's Very Good! TERMS: Payment in Full Prior to Shipping. F..O.B.: Machine Prep & Loading Required. I thank you on your review and consideration on this Special Muratec MW-200G/ MS-100G Cell in shop installed for Inspection opportunity. Sincerely, Mark V. Murphy
