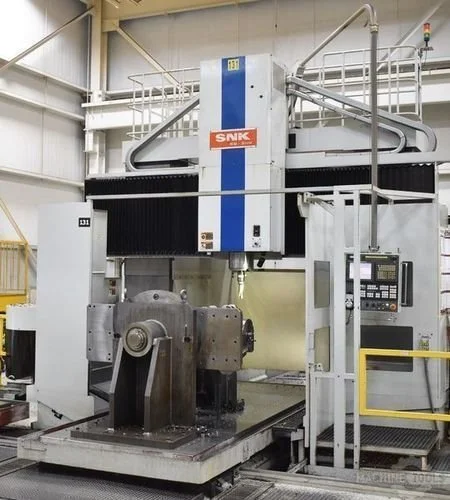

(1) 2006 SNK RB-3NM CNC Bridge Type Vertical Machining Center with Fanuc 18iMB CNC Control and 2-Pallet System for Productivity With Right Angle Milling Attachment and All Options
Murphy Machinery is Pleased to Offer the Following CNC Bridge Mill in Plant Under Power for Inspection in Shop!
(1) 2006 SNK RB-3NM CNC Bridge Type Vertical Machining Center with Fanuc 18iMB CNC Control and 2-Pallet System for Productivity With Right Angle Milling Attachment and All Options
FEATURES:
Fanuc 18i-MB CNC Control
80-Station Automatic Tool Changer
2-Pallet Shuttle System
CAPACITY:
X-Axis, Table Travel ..................................... 167.32"
Y-Axis, Spindle Head Travel ........................ 94.48"
Z-Axis, Quill Stroke ...................................... 23.62"
W-Axis, Cross Rail Vertical Travel............... 43.30"
Right Angle Head Attachment Indexing .... 1-Degree
Distance Between Columns ........................ 94.48"
Distance Spindle to Pallet Surface ............. 0 to 59.05"
Table Size ..................................................... 59.05" x 157.48"
Table Weight Capacity ................................ 15,400 lbs
Spindle Speeds ........................................... 40-4500 RPM
Spindle Nose Taper .................................... CAT #50 Big Plus
Spindle Motor ............................................. 50 HP
Fanuc 18i-MB CNC Control
80-Station Automatic Tool Changer
Pallet Shuttle System with (2) 59" x 157" Pallets
Programable CNC Cross Rail
50 HP Spindle Motor
Scales
Right Angle Milling Unit
Special Offered Price:.......... $ Please Email Request
F.O.B: Machine Options Require Prep & Rigging.
Terms: Payment in Full Prior to Shipment.
I thank you for the opportunity to quote and look forward to your questions and Interest.
