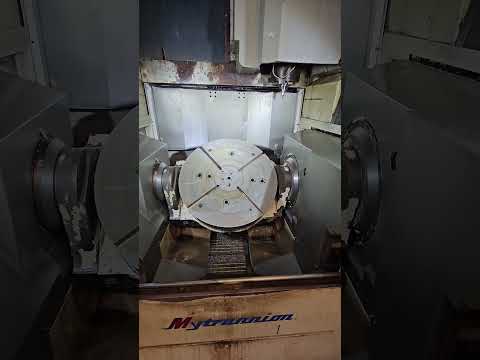

2006 KITAMURA Kitamura My-Trunnion 5 Vertical Machining Centers (5-Axis or More) | Murphy Machinery (1)

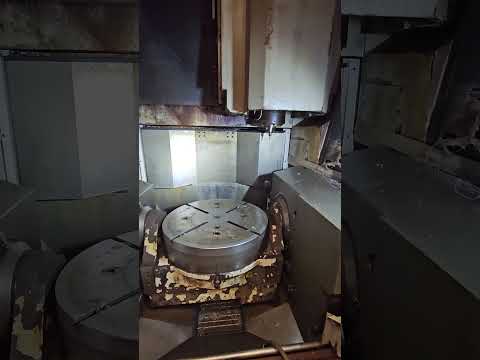

2006 KITAMURA Kitamura My-Trunnion 5 Vertical Machining Centers (5-Axis or More) | Murphy Machinery (2)

2006 KITAMURA Kitamura My-Trunnion 5 Vertical Machining Centers (5-Axis or More) | Murphy Machinery (3)

2006 KITAMURA Kitamura My-Trunnion 5 Vertical Machining Centers (5-Axis or More) | Murphy Machinery (4)

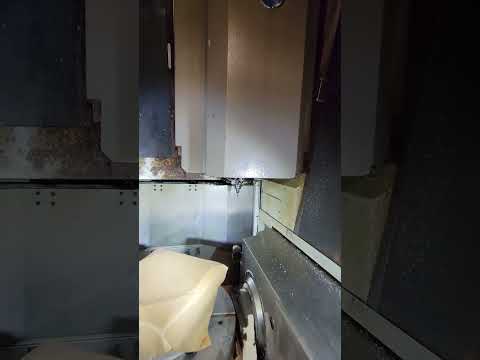

2006 KITAMURA Kitamura My-Trunnion 5 Vertical Machining Centers (5-Axis or More) | Murphy Machinery (5)

2006 KITAMURA Kitamura My-Trunnion 5 Vertical Machining Centers (5-Axis or More) | Murphy Machinery (6)

2006 KITAMURA Kitamura My-Trunnion 5 Vertical Machining Centers (5-Axis or More) | Murphy Machinery (7)

2006 KITAMURA Kitamura My-Trunnion 5 Vertical Machining Centers (5-Axis or More) | Murphy Machinery (8)

2006 KITAMURA Kitamura My-Trunnion 5 Vertical Machining Centers (5-Axis or More) | Murphy Machinery (9)

2006 KITAMURA Kitamura My-Trunnion 5 Vertical Machining Centers (5-Axis or More) | Murphy Machinery (10)

2006 KITAMURA Kitamura My-Trunnion 5 Vertical Machining Centers (5-Axis or More) | Murphy Machinery (11)

2006 KITAMURA Kitamura My-Trunnion 5 Vertical Machining Centers (5-Axis or More) | Murphy Machinery (12)

2006 KITAMURA Kitamura My-Trunnion 5 Vertical Machining Centers (5-Axis or More) | Murphy Machinery (13)

2006 KITAMURA Kitamura My-Trunnion 5 Vertical Machining Centers (5-Axis or More) | Murphy Machinery (14)

2006 KITAMURA Kitamura My-Trunnion 5 Vertical Machining Centers (5-Axis or More) | Murphy Machinery (15)

2006 KITAMURA Kitamura My-Trunnion 5 Vertical Machining Centers (5-Axis or More) | Murphy Machinery (16)

2006 KITAMURA Kitamura My-Trunnion 5 Vertical Machining Centers (5-Axis or More) | Murphy Machinery (17)

2006 KITAMURA Kitamura My-Trunnion 5 Vertical Machining Centers (5-Axis or More) | Murphy Machinery (18)

2006 KITAMURA Kitamura My-Trunnion 5 Vertical Machining Centers (5-Axis or More) | Murphy Machinery (19)

2006 KITAMURA Kitamura My-Trunnion 5 Vertical Machining Centers (5-Axis or More) | Murphy Machinery (20)

2006 KITAMURA Kitamura My-Trunnion 5 Vertical Machining Centers (5-Axis or More) | Murphy Machinery (21)

2006 KITAMURA Kitamura My-Trunnion 5 Vertical Machining Centers (5-Axis or More) | Murphy Machinery (22)

2006 KITAMURA Kitamura My-Trunnion 5 Vertical Machining Centers (5-Axis or More) | Murphy Machinery (23)

2006 KITAMURA Kitamura My-Trunnion 5 Vertical Machining Centers (5-Axis or More) | Murphy Machinery (24)

2006 KITAMURA Kitamura My-Trunnion 5 Vertical Machining Centers (5-Axis or More) | Murphy Machinery (25)

2006 KITAMURA Kitamura My-Trunnion 5 Vertical Machining Centers (5-Axis or More) | Murphy Machinery (26)

2006 KITAMURA Kitamura My-Trunnion 5 Vertical Machining Centers (5-Axis or More) | Murphy Machinery (27)

2006 KITAMURA Kitamura My-Trunnion 5 Vertical Machining Centers (5-Axis or More) | Murphy Machinery (28)

2006 KITAMURA Kitamura My-Trunnion 5 Vertical Machining Centers (5-Axis or More) | Murphy Machinery (29)

2006 KITAMURA Kitamura My-Trunnion 5 Vertical Machining Centers (5-Axis or More) | Murphy Machinery (30)

Have one to sell?

Overview

Type:

Vertical Machining Centers (5-Axis or More)

Manufacturer:

KITAMURA

Model:

Kitamura My-Trunnion 5

Condition:

Excellent

Year:

2006

Stock #:

Status:

For Sale

Country:

United States

Description

(4) Stock 2007 - 2006 Kitamura My-Trunnion 5-Axis w/Fanuc 16i-MB Controls, 50 Position Automatic Tool Changer, 20,000 Rpm Spindle, 24" 4-jaw Rotary Chuck, Heavy Duty Taper Milling will All Box Way Construction & Rigidity. This is a Japan Quality Constructed Machine With Great USA Factory & Local Dealer Network Supported Machine. *New Work Area Photos & Videos Links to View. (3) Identical Machines Available!. 2006 KITAMURA MY-TRUNION 5 ATC OPERATION VIDEO LINK

#1 http://tbf.me/a/BWwinE 2006 KITAMURA MY TRUNION 5 AUTOMATIC TOOLCHANGER VIDEO #2 http://tbf.me/a/BVIEi3 2006 KITAMURA MY TRUNION 5 SPINDLE OPERATION VIDEO #3 http://tbf.me/a/CEtSfT Production Views.

Specifications

ImperialMetric

X	32"	812.8 mm
Y	29.3"	744.22 mm
Z	19.7"	500.38 mm
# Axis	5	5
Power	30 hp	22.4 kW
RPM	20,000 RPM	20,000 RPM
# ATC	50	50
Taper	CAT 40	CAT 40
Control	CNC (Fanuc 16IMB)	CNC (Fanuc 16IMB)

2006 Kitamura My-Trunnion 5-Axis w/Fanuc 16i-MB Controls, 50 Position Automatic Tool Changer, 20,000 Rpm Spindle, 24" 4-jaw Rotary Chuck, Heavy Duty Taper Milling will All Box Way Construction & Rigidity This Japan Quality Constructed Machine With Great USA Factory & Local Dealer Network Machine.

* Updated Work area Photos & Videos in Process.!.

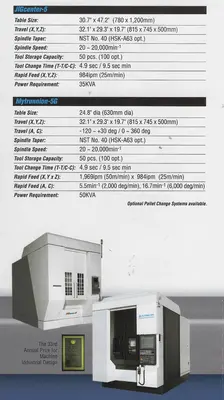

Main Specifications
Table Length 24.8 "
Table Width 19.7 "
CNC 5-Axis Mach Center

MyTrunnion 5
FANUC 16i-MB
Cat 50 Spindle taper
Spindle speed range 20 ~ 20,000 rpm
Spindle motor power 20 hp
ATC 50 Tool
Max longitudinal cutting feed (X-Axis) 1,968 "/min
Max transversal cutting feed (Y-Axis) 1,968 "/min
Max vertical ram cutting feed (Z-Axis) 984 "/min
X-Axis travel 32.3 "
Y-Axis travel 29.3 "
Z-Axis travel (Ram Stroke) 19.6 "
Machine Weight 38,000 lbs

Special Features Specifications:
A Axis: 150° ( Table Tilt )
C Axis: 360° ( Table Rotate )
Max Weight on Table: 880 lbs
T-Slot : 0.7″ X 3 Slots
Table to Spindle Nose: 3.9″ – 23.6″
Rapid A : 2000 Degree Per Minute
Rapid C : 6000 Degree Per Minute
Cutting Feedrate: 984 Inch Per Minute
Max Tool Size: 5.91″ X 11.8″
Max Tool Weight: 22 lbs.
Tool Change Time: 1.7 Second
Simultaneous 5 Axis Cutting
20,000 RPM High Precision Spindle
Coolant through Spindle
Glass Scales on the Axis's
PCMCIA Card Slot
128 MB Memory
Spindle Chiller
Spindle Orientation
Helical Interpolation
Rigid Tapping
Absolute Incremental Programming
Fast Rapid Traverse Rate
Flood coolant with large separate coolant tank
Chip Conveyor
Work light

Fully Installed and under power for inspection

Special Offered Price..... $ Please Email Request

Thank you on review and look forward to any questions.

Sincerely,

Mark Murphy
Murphy Machinery
