OKUMA LC-50 4-AXIS HEAVY DUTY TURNING CAPABILITIES IN EXCELLENT CONDITION * Under Power Plant Div. Moving December 2024

2001 Okuma LC-50 Heavy Duty 4-Axis Turning Center wit Okuma OSP 7000L CNC Control and All Installed Options.

Main Specifications
Max Swing Swing 31.49"
Center Distance 29.5 Spindle Hole 6.669" Spindle Speeds 10-1500 RPM
Spindle Horse Power 60/75 HP

Carriage (Z-Axis)
Longitudinal Travel, UT 80.31"
Cutting Feedrates .0001-39.37 IPR
Rapid Traverse Speed, UT 393.7 IPM
Cutting Feedrates, LT .0001-39.37 IPR )
Rapid Traverse Speed, LT 393.7 IPR

Cross-Slide Travel (X-Axis)
Longitudinal Travel, UT 12.99+5.51"
Cutting Feedrates, UT .0001-39.37 IPR
Rapid Traverse Speed, UT 196.85 IPM
Longitudinal Travel, LT 10.04+.59"
Cutting Feedrates, LT .0001-39.37 IPR
Rapid Traverse Speed, LT 196.85 IPM

Turret
No. of Tool Stations, UT 12
No. of Tool Stations, LT 8
Bed Length of Upper Slideway 86.22"
Width of Upper Slideway 28.35"
Length of Lower Slideway 86.22"
Width of Lower Slideway 22.05"
Hydraulic Tank Capacity 10.6 Gal

Fully Installed Under Power for Inspection.
Very Good working condition

Machine length 125" - 10 ' 4"
Machine width 255.9" - 21ft. 2"
Machine height 114.0 - 9ft. 5"
Machine weight 41,500 Lbs.

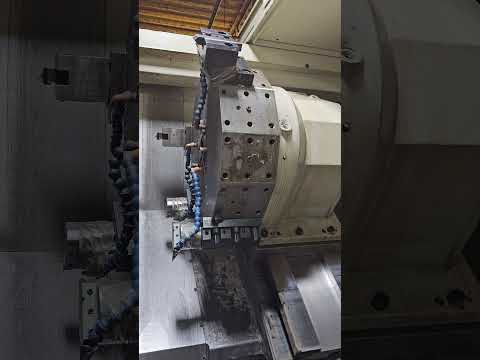

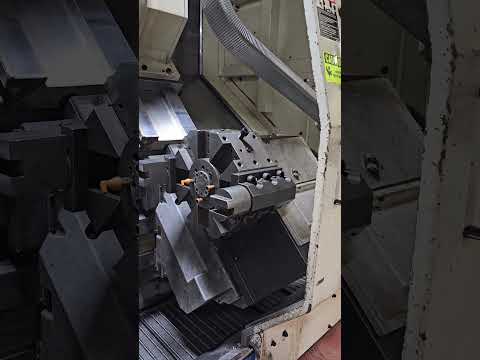

www.transferbigfiles.com Operation Video Link

2001 Okuma LC-50 CNC Heavy Duty 4-Axis Turning Center With All Installed Options!

http://tbf.me/a/CTXM93

Special Price: Please Email Request.

I thank you for your review and consideration.

Sincerely,
Mark Murphy
