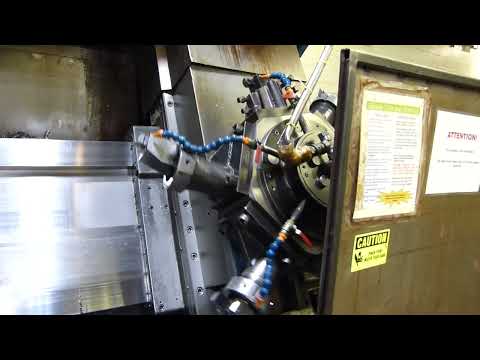

MORI SEIKI SL-8C CNC BIG BORE BOX WAYS Loaded with All Toolholder on Turret and Self Centering Gear Locking Scroll Chuck

MORI SEIKI SL-8C CNC BIG BORE BOX WAYS Loaded with All Toolholder on Turret and Self Centering Gear Locking Scroll Chuck

Have one to sell?
414-520-0843
markmurphy@murphymachinery.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC Lathes
Manufacturer:
MORI SEIKI
Model:
SL-8C
Condition:
Excellent
Stock #:
30
Status:
For Sale

Description

Mori Seiki Model SL8-C Slant Bed Oil Country CNC Turning Center with 14-1/2 Spindle Thru-Hole 39.3" Swing x 40" Centers Fanuc 6T Model CNC Controls Machine and All Electrics are in Top condition.

Swing39"990.6 mm
Machining Length43.3"1,099.8 mm
Chuck Size39"990.6 mm
Bar Capacity14.5"368.3 mm
Power60 hp44.7 kW
Max RPM370 RPM370 RPM
Turning Dia35.4"899.16 mm
TailstockNoNo
Live ToolingNoNo
Sub SpindleNoNo
ControlCNC (Fanuc 6TB)CNC (Fanuc 6TB)
Weight35,200 LBS35,200 LBS

Mori Seiki Model SL8-C Slant Bed Oil Country CNC Turning Center
with 14-1/2 Spindle Thru-Hole 39.3" Swing x 40" Centers
Fanuc 6T Model CNC Controls Machine and All Electrics are in
Top condition.

Specifications:
SWING OVER BED 39.3"
SWING OVER CARRIAGE 35.4"
MAX. MACHINING DIAMETER 35.4"
MAX. LONGITUDINAL TRAVEL 43.3"
MAX. CROSS TRAVEL 16.5"
SPINDLE NOSE A2-20
SPINDLE BORE 14.5"
BED'S SLANT 60 DEGREES
TURRET STATIONS 6
MAIN MOTOR 60 HP
MACHINE WEIGHT 35,200 LBS

27" - 3 jaw Chuck Installed with a 9" Thru Hole.
