OKUMA IMPACT LU45-M
Have one to sell?
ConditionUsed
1 available

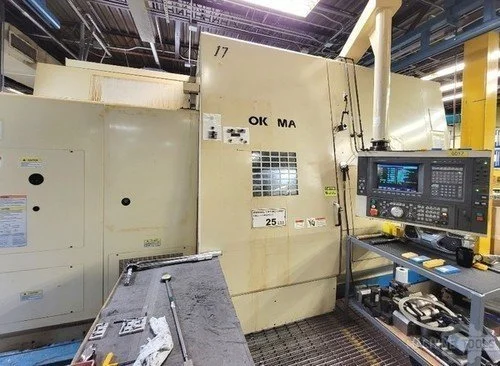

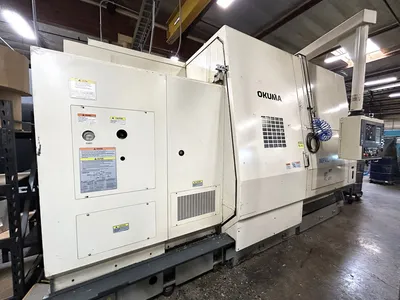

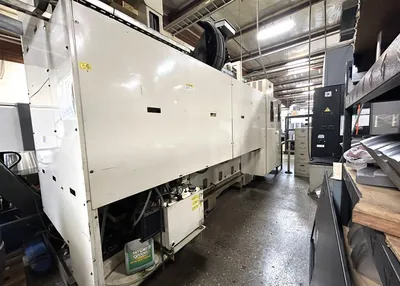

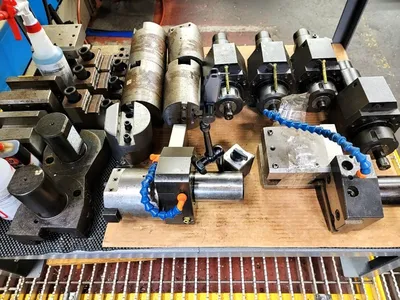

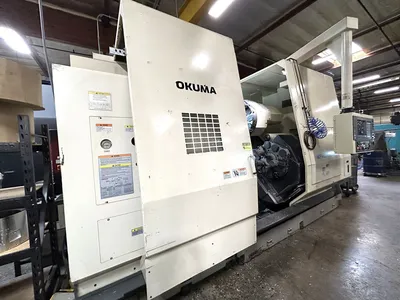

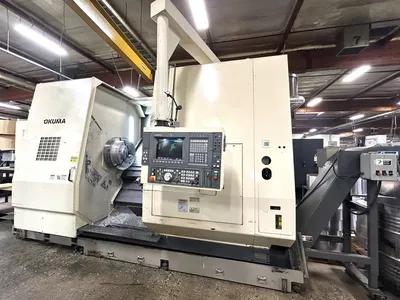

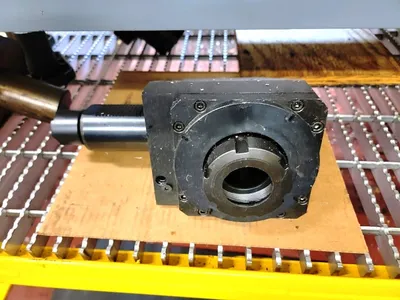

2001 OKUMA LU45-M LIVE TOOL CNC 5-AXIS LIVE TOOL TURNING CENTER WITH OKUMA OSP-7000L CNC CONTROL WITH IGF COLOR GRAPHICS CONVERSATIONAL PROGRAMING. FULL C-AXIS MILLING FUNCTION. ALL INSTALLED AND AVAILABLE LIVE TOOL MILLING UNITS AND TOOL HOLDERS. * FULLY INSTALLED FOR INSPECTION.
2001 OKUMA LU45-M LIVE TOOL CNC 5-AXIS LIVE TOOL TURNING CENTER WITH OKUMA OSP-7000L CNC CONTROL WITH IGF COLOR GRAPHICS CONVERSATIONAL PROGRAMING AND ALL INSTALLED OPTIONS AND LIVE TOOLING AND TOOLHOLDERS. FULLY INSTALLED FOR INSPECTION.
* Machine is in Very Good Condition Holding Tight Tolerance Ran Aluminum & Bronze Ring Applications! Ways 10-10 Condition.

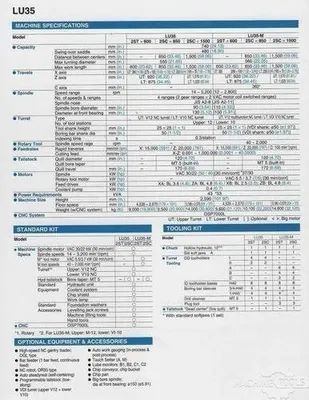

SPECIFICATIONS:
Model LU45-M

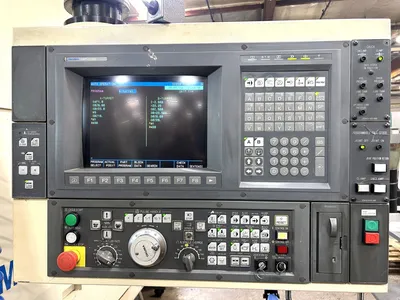

Okuma OSP-U100L Color Graphics with IGF Conversational Programing
Swing over bed 33"
Max. turning diameter XA/XB 23"/18”
Center distance: 1250mm / 49.21"
Travels, Z axis 1250mm / 49.21"
X-axis Travel 26"

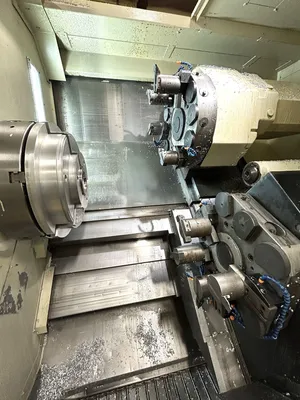

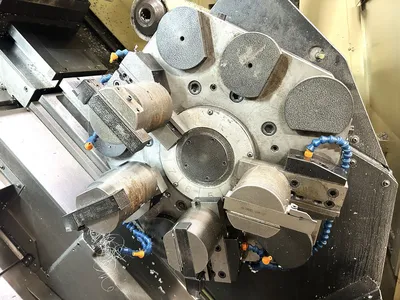

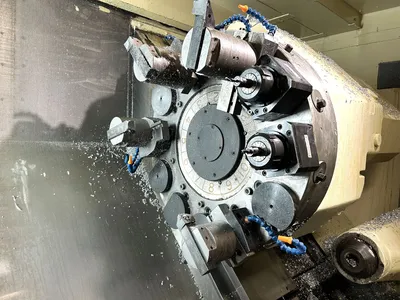

Turret stations 10 upper/8 lower Live Mill / Drilling
Spindle nose A2-11
Spindle speed 31-900 rpm.
Rapids Z/X 393/196 IPM
Feed rates 0.00001---39.37 IPM

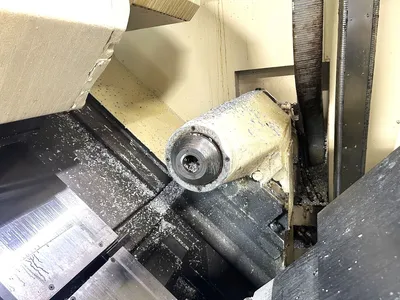

Quill diameter 5.12" MT No. 5
Main motor (Cont./30 Min) 50 HP / 60 HP
Electrics 220/480/3/60
Dimensions Floor Space 294" x 89" X 82”H

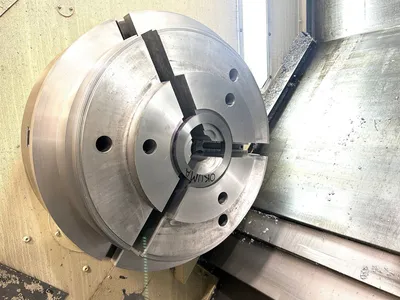

27" Rohm 3-Jaw Manual Combination Chuck.
Programming:

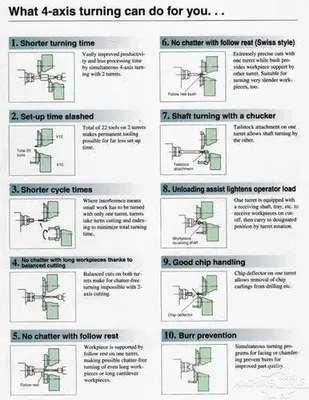

• Conventional 2- 4-Axis programming steps and language.
• OSP makes the conversions for the lower turret .
• Machining is executed in the order of “P-codes” (P1--Pn )
Special Reduced Price Please Email Request.
