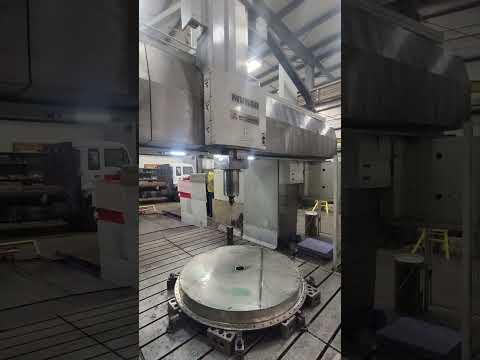

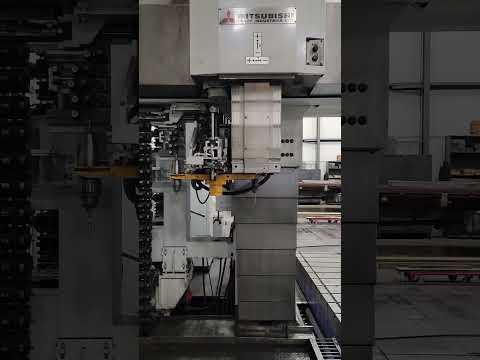

MITSUBISHI MVR40 CNC Double Column 5- Sided Vertical Machining Center
Have one to sell?
ConditionUsed
1 available
2014 Mitsubishi MVR-40 CNC Double Column 5-Sided Vertical Machining Center with 360 Degree Right Angle Milling Attachment & Spindle Riser Added Clearances Fanuc 31iMB CNC Control and all Installed Factory Options.
2014 Mitsubishi MVR-40 CNC Double Column 5-Sided Vertical Machining Center with Fanuc 31iMB CNC Control and all Installed Factory Options.
MAIN SPECIFICATIONS
TABLE SIZE 236.22" X 118.11"
DISTANCE BETWEEN COLUMNS 147.60"
MAXIMUM HEIGHT UNDER SPINDLE NOSE 84.6"
X-AXIS TRAVEL, TABLE LONGITUDINAL 244.10"
Y-AXIS TRAVEL, HEAD 165.35"
Z-AXIS TRAVEL, SPINDLE 27.55"
W-AXIS TRAVEL, CROSSRAIL 31.49"
RAM SIZE 13.7" X 13.7"
SPINDLE DIAMETER 4.33"
SPINDLE SPEEDS 17-4000 RPM
SPINDLE TAPER NO. 50
SPINDLE DRIVE MOTOR 40 HP
CUTTING FEEDS .039-393.7 IPM
X-AXIS POSITIONING ACCURACY +/- 0.0010/244.1"
Y-AXIS POSITIONING ACCURACY +/- 0.0008/157.5"
Z-AXIS POSITIONING ACCURACY +/- 0.0002/31.5"
W-AXIS POSITIONING ACCURACY +/- 0.0003/43.3"
RAPID TRAVERSE, X-AXIS 590.55 IPM
RAPID TRAVERSE, Y-AXIS 866.14 IPM
RAPID TRAVERSE, Z-AXIS 393.70 IPM
RAPID TRAVERSE, W-AXIS 118.11 IPM
APPROXIMATE MACHINE WEIGHT 130,000 LBS
FANUC 31I-A CNC CONTROLS
80 POSITION AUTOMATIC TOOL CHANGER

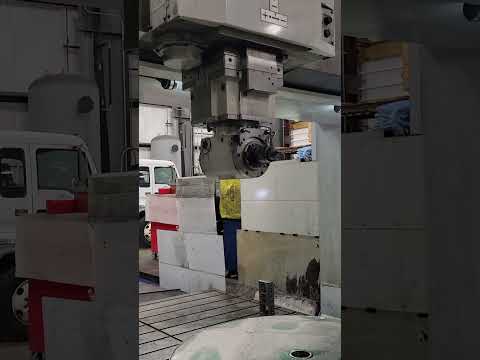

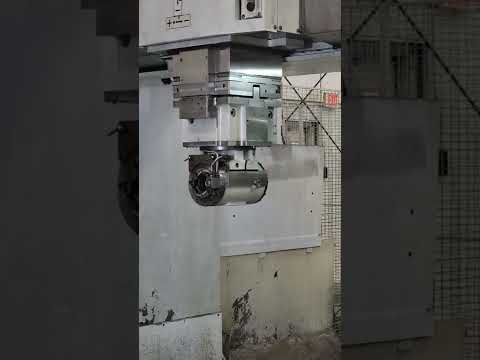

MITSUBISHI VHRH-30-35-35P-AC CNC RIGHT ANGLE HEAD WITH 1-DEGREE INDEXING
5-FACE MACHINING SOFTWARE
GEARED HEAD
ATTACHMENT STORAGE FOR RIGHT ANGLE HEAD
FACTORY COLUMN RISER FOR 84.6" CLEARANCE SPINDLE NOSE TO TABLE
RIGID TAPPING
MP SCALES ON X,Y,Z,W AXES
COOLANT/AIR THRU SPINDLE, 141 PSI
TELESCOPING WAY COVERS
AUTOMATIC HEAD CHANGER SYSTEM CHIP CONVEYOR
TOOLING PACKAGE AVAILABLE PRICE ON REQUEST
