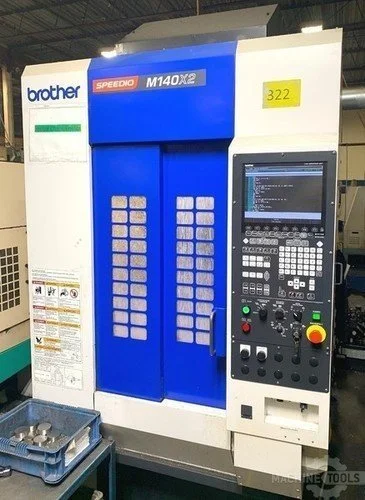

BROTHER SPEEDIO M140X2

2017 BROTHER Model SPEEDIO M140X2 DRILL & TAPPPING Vertical Machining Center 5-Axis Trunnion Type, 16000 RPM, Coolant Through Spindle Top Condition (2) Identical Machine Cell Available

MACHINE SPECIFICATIONS
X-axis: mm (inch) 200 (7.9)
Y-axis: mm (inch) 440 (17.3)
Z-axis: mm (inch) 305 (12.0)
A-axis [deg.]: 120 - -30
C-axis [deg.]: 360
Table Work area size: D 5.5
Shape of table top: In compliance with table nose
No.5 of ISO702-4 (JI)
Max.loading capacity: 24 Lbs
Spindle speed: 16,000 RPM
Speed during tapping: Max. 6,000 RPM
Tapered hole: 7/24 tapered No.30
Turning spindle: 2,000 RPM
Rapid traverse rate: 1969 IPM
Cutting feed rate: 1181 IPM
Indexing feed rate (A and C): A axis 60, C axis 200
Tool shank type: MAS-BT30
Pull stud type: MAS-P30T-2
Tool storage capacity: 22
Max. tool length: 7.9"
Max. tool diameter: 3.1"
Max. tool weight: 6.6 lbs.
Tool selection method: Random shortcut method
Tool change time: 0.9 seconds
Turning Spindle: 5.5 HP
Power source Power supply: AC V10%, 50/60Hz1Hz
Power capacity(continuous) [kVA]: 10,000min-1 specifications : 9.5 16,000min-1 specifications (Optional): 9.5
Air supply Regular air pressure [MPa]: 0.4 - 0.6 (recommended valu6
Required flow [L/min]: 165
Machine dimensions: 102.5"
Required floor space: 50.4 X 150.7"
Weight: 5,979 Lbs
Operation Time: 1247 hours
Power On Time: 5026 hours
Equipped with:
Brother C00 CNC Control with built in Interface
5th Axis Trunnion Table
Coolant Through Spindle Interface (no pump)
NK brand turning tool holder
Chip Power System
150L Coolant Tank
Complete covers with Ceiling Cover and Safety Door Interlock
Automatic Grease Lubrication System
Air Assisted Tool Wash and Back Washing System
Rear Discharge Mayfran Chip Conveyor

Special Pricing (2) Machine Cell $
