BLANSKO SK-50A

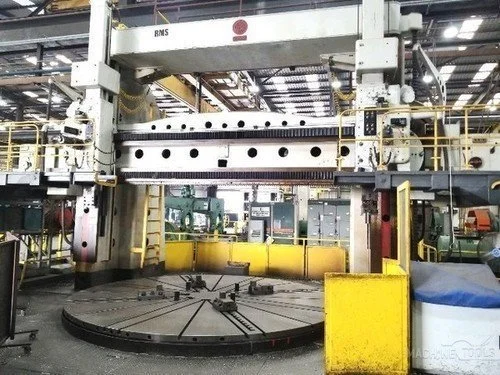

BLANSKO SK-50A Dual Column CNC Vertical Boring Mill
With Retrofitted 2002 Siemens 828D CNC Control with All
Options Special Package Pricing wit Prep & Rigging on Trucks
on Request.

Specifications
Table Diameter 187 "
Swing 228 "
Height 120.1 "
Table load 100,000 Lbs
Control Siemens 828D
Distance between the Columns 204 "
Side Head Horizontal Travel 49.2 "
Main Motor Power 100 hp
Machine Weight 277,000 Lbs.

Note Additional info:
Cross section of cutting tool: 2.250" x 2.250"

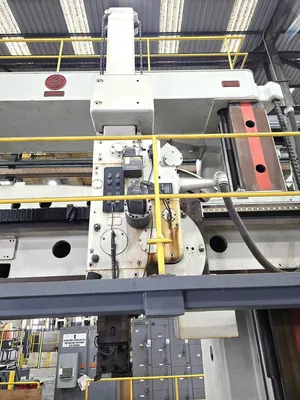

Number of Crossrail Tool Heads: (2)
Number of Side Heads: (1) Note: Sidehead ram is adapted for accomodation of clamping tools
Number of chuck jaws: (4)
Equipment for turning tapers & cutting threads using change gears with right-hand tool head on cross-rail
Width of T-Slots in table: 1.41"
Distance between table center & column edge measured in inclined plane (approx): 104"
Distance range between table center & toolholder of side head: 51" to 100"
Max lowering of center of side head ram below table: 9.45"
Diameter range of workpieces that can be clamped by jaws: 28.55" to 179.7"
Rate of Crossrail adjustment (approx): 24 inches/minute
Horizontal movement of sidehead ram: 49.23"
Horizontal movement of cross rail toolhead measured from machine center to center of ram adjusted to it's extreme outer position (approx): 0.785" to 112.9"
Number of feeds to cross rail toolhead: (14)
Number of feeds to sidehead: (14)
Vertical and horizontal rapid feed motions to crossrail toolhead: 28 ipm
Vertical and horizontal rapid feed motions to sidehead: 28 ipm
Power-operated swiveling of cross rail toolheads: 16 rpm
440/3/60 Electrics (normal running load of 280 amps)

Installed and Under Power for Inspection
Available for immediate inspection and delivery
Exceptionally Operating condition
Special Offered Reduced Pricing:
