1997 Muratec MW12-G CNC Twin Spindle Turning Center Fanuc 18T CNC Control w/Gantry Loader and 14 Pallet Stocker Table and All Work holding Available Options.
Have one to sell?
ConditionUsed
1 available
1997 Muratec "Murata" MW12-G CNC Twin Spindle Turning Center Fanuc 18T CNC Control w/Gantry Loader and 14 Pallet Stocker 14 Pallet Feeder Table and All Available Options.
Fully Installed Original Installation, Top Maintenance, and Accuracy Condition.
SPECIAL LIST PRICE:.........$ Please Email or Call
Term: Payment in Full Prior to Shipment.
I look forward to hearing from you on interest, and reviewing any questions.
This Machine is excellent in to visit and machine is 1st Class Plant with Top Maintenance on Machines.
I thank you for your review.
Sincerely,
Mark V Murphy
Murphy Machinery Sales, Inc.
Distance Between Spindles: 13.39"
Max. Swing:....................: 11.61"
Standard Chuck Size:.......: 8" Pull Back Chucks
Turning Diameters: 4.72" Nominal, 9.440" Max.
Turning Lengths: 3.150" Nominal, 3.94" Max.
Number of Turret Stations: 8
X-Axis: 5.12" Stroke, 945 IPM Traverse Rate
Z-Axis: 5.71" Stroke, 945 IPM Traverse Rate
Rapid Traverse Rate (X & Z Axis): 78.78 FPM
Spindle Speeds: 45 - 4500 RPM
Spindle Noses: A2-5, Bore 1.850"
Spindle Drive Motors: 10 HP
Tool Shank Size: 0.75" Square, 1.570" Round
Approx. Weight w/Loader: 9,700 lbs.
Floor Space: L 74.8 x w 69.3"
Loader Specifications:
X-Axis Stroke: L7.87"/R63", Max. Speed: 492 FPM
Y-Axis Stroke: 19.09", Max. Speed: 361 FPM
Z-Axis Stroke: 6.1", Max. Speed: 115 FPM
a-Axis: 180 Deg., Max. Speed: 0.6 sec./180 Deg.
Load/Unload Grippers: Outer Diameter: 3.54"
Jaw Stroke: 1.18"
Max. Work piece Weight:
4.4 Lbs. x 2 or 8.8 Lbs. Part Weight
Muratec Fanuc 18T CNC Control
Single Gantry Loader
Chip Conveyor
Coolant Tank and Pumps

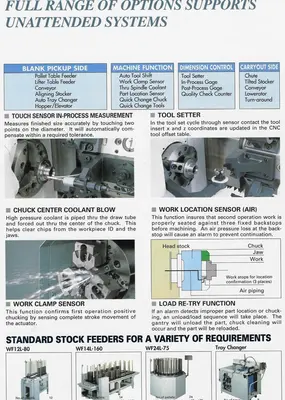

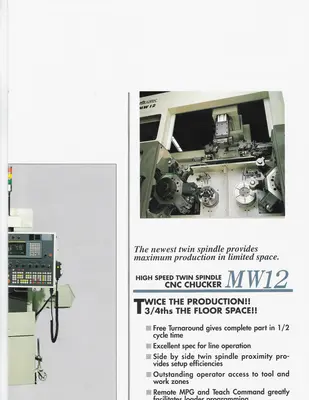

Please Note: This Catalog may be 1996 Version.
