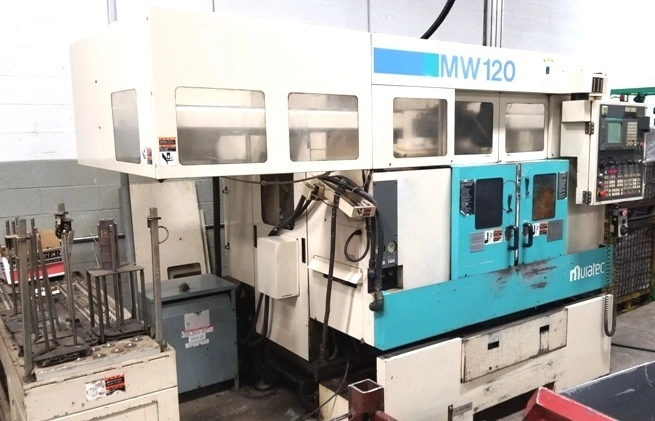

2000 Muratec "Murata" MW120-G CNC Twin Spindle Turning Center Fanuc 18iT CNC Control, Single Gantry Loader and14 Pallet Stocker Feeder Table, Rear Discharge Chip Conveyor, All Tooling & Options

2000 Muratec -Murata MW120-G CNC Twin Spindle Turning Center Fanuc 18iT CNC Control, Single Gantry Loader and14 Pallet Stocker Feeder Table, Rear Discharge Chip Conveyor, and All Available Options.

Distance Between Spindles:.............. 13.39"
Max. Swing:................................... 11.61"
Standard Chuck Size.... 6"or 8" Pull Back Chucks
*Optional Installed New Kitagawa 6" UBL Pull Back
*Optional CNC Collet Chuck on 2nd Spindle.

Turning Diameters: 4.72" Nominal, 9.440" Max.
Turning Lengths: 3.150" Nominal, 3.94" Max.
Number of Turret Stations: 8
X-Axis: 5.12" Stroke, 945 IPM Traverse Rate
Z-Axis: 5.71" Stroke, 945 IPM Traverse Rate
Rapid Traverse Rate (X & Z Axis): 78.78 FPM
Spindle Speeds: 45 - 4500 RPM
Spindle Noses: A2-5, Bore 1.850"
Spindle Drive Motors: 15 HP
Tool Shank Size: 0.75" Square, 1.570" Round
Approx. Weight w/Loader: 11,800 lbs.
Floor Space: L 139.37" x w 136.22"

Murata Gantry Loader Specifications:
X-Axis Stroke: L7.87"/R63", Max. Speed: 492 FPM
Y-Axis Stroke: 19.09", Max. Speed: 361 FPM
Z-Axis Stroke: 6.1", Max. Speed: 115 FPM
a-Axis: 180 Deg., Max. Speed: 0.6 sec./180 Deg.
Load/Unload Grippers: Outer Diameter: 3.54",
Jaw Stroke: 1.18"
Max. Work-Piece Weight: 8 lbs x 2 Parts
16 Lbs. Max.
