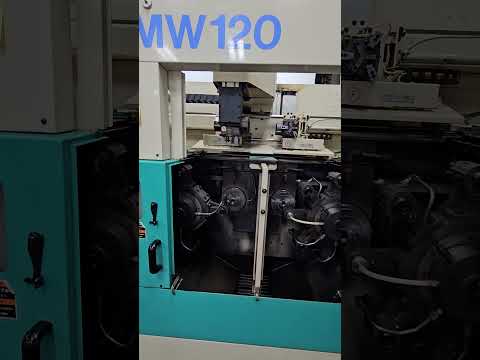

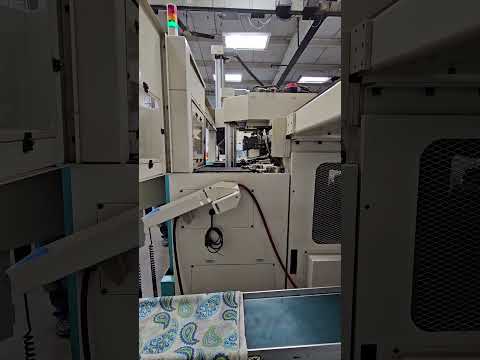

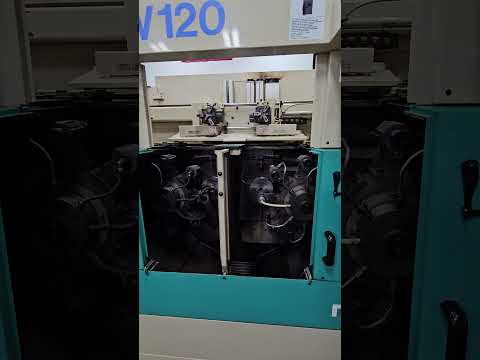

2005 Muratec "Murata" MW120/GT CNC Twin Spindle Turning Center w/Twin Gantry Loaders With Fanuc 18iT CNC Control and All Opti

Distance Between Spindles: 13.39"
Max. Swing:...…………………... 11.61"
Standard Chuck Size:...…….. 6/8"
Turning Diameters: 4.72" Nominal, 9.440" Max.
Turning Lengths: 3.150" Nominal, 3.94" Max.
Number of Turret Stations: 8
X-Axis: 5.12" Stroke, 945 IPM Traverse Rate
Z-Axis: 5.71" Stroke, 945 IPM Traverse Rate
Rapid Traverse Rate (X & Z Axis): 78.78 FPM
Spindle Speeds: 45 - 4500 RPM
Spindle Noses: A2-5, Bore 1.850"
Spindle Drive Motors: 15 HP
Tool Shank Size: 0.75" Square, 1.570" Round
Approx. Weight w/Loader: 11,800 lbs.
Floor Space: L 139.37" x w 136.22"

Loader Specifications:
X-Axis Stroke: L7.87"/R63", Max. Speed: 492 FPM
Y-Axis Stroke: 19.09", Max. Speed: 361 FPM
Z-Axis Stroke: 6.1", Max. Speed: 115 FPM
a-Axis: 180 Deg., Max. Speed: 0.6 sec./180 Deg.
Load/Unload Grippers: Outer Diameter: 3.54", Jaw Stroke: 1.18"
Max. Workpiece Weight: 8 lb x 2

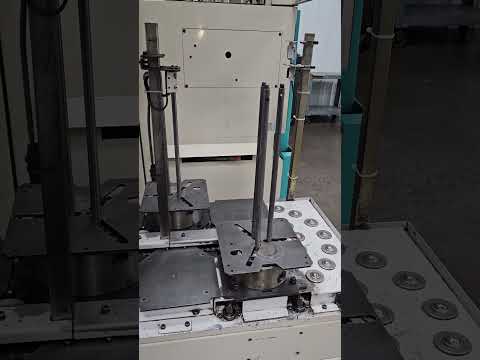

Equipped with: Fanuc 18T CNC Control, Dual Gantry Loaders, Chip Conveyor, 2-Stocker Feeder Tables
Coolant Tank and Pump,

Machine Requirements. *Excellent Fast Cycle Applications. 18-20 Seconds Cut Times.
