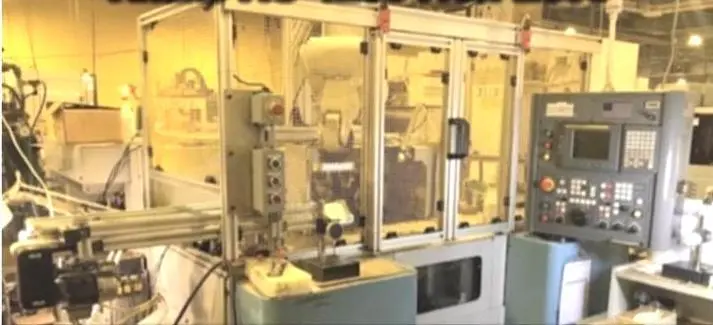

2009 Kitako HS-4200 Fanuc 18iTB CNC Control and Mitsubishi Twin Arm Integrated Installed Robotic Parts Loader all All Input and Discharge Conveyors and Options Installed on Machine.

Model HS4200i Mitsubishi Robot Loader
Max. Turning Diameter and Length 7.8" x 4"
Chuck Size 8" x 4 Units Installed
Spindle Nose A2-6
Spindle Motor 15HP / 20HP
Maximum Spindle Speed 4,500 rpm
Carrier Index 1.5 seconds / 180
X-Axis Travel 6.3"
Z-Axis Travel 9.8"
Rapid Traverse 945 IPM (X), 1181 IPM (Z)
Turret 8 Station Turret x 2
Turret Index 0.3 second per Station
2 Fanuc Robot Carrier Loading System
Maximum Part Size (diameter x length) 5.9" x 3.9"
Maximum Part Weight 6.6 lbs x 2
Feed Rates (X/Y/Z) 6,693 IPM / 4,724 IPM / 2,165 IPM
Totally Enclosed Splash Guards
Door Interlock
Hydraulic Circuit Alarm Indicator
Production Counter
Maintenance Counter
Tool Counter
Coolant Equipment
Rear Discharge Chip Conveyer
Foot Switch
Alarm Message Function
Lubrication Circuit Alarm Indicator
Servo Motor Driven Carrier (2 Second Index Time)
Tool Holder for 8 Station Drum

Machine Fully Installed for Inspection.
