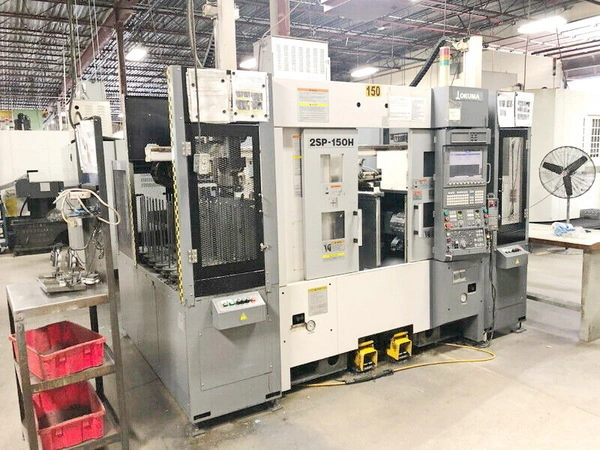

2012 OKUMA 2SP-150H TWIN SPINDLE WITH TWIN-GANTRY LOADERS TURNING CENTER WITH DUAL PALLET FEEDER TABLES AND ALL OPTIONS
Have one to sell?
ConditionUsed
1 available
2012 OKUMA 2SP-150H TWIN SPINDLE WITH TWIN-GANTRY LOADERS TURNING CENTER
OSP-P200LA CNC CONTROL, 16 STATION PITCH FEED GANTRY LOADER, V12 +V12 TURRET TYPE.
SPINDLE BORE: 1.65"
MAX TURN DIA: 5.91"
MAX LENGTH: 3.15"
CHUCK: 6"
SPINDLE SPEEDS: 4500 RPM
SPINDLE MOTOR: 15 HP
SPINDLE NOSE: 140 Flat
X-AXIS TRAVEL/CROSS: 5.91"
Z-AXIS TRAVEL/LONGITUDINAL: 6.1"
X-AXIS RAPID TRAVERSE: 944 IPM
Y-AXIS RAPID TRAVERSE: 944 IPM
MACHINE DIMENSIONS: (APPROX.) 74"x85"x100"
WEIGHT: (APPROX.) 11,000 LBS
2012 OKUMA 2SP-150H TWIN SPINDLE WITH TWIN-GANTRY LOADERS TURNING CENTER
OSP-P200LA CNC CONTROL, 16 STATION PITCH FEED GANTRY LOADER, V12 +V12 TURRET TYPE.
Imperial
| Swing | 13.7" |
| Machining Length | 5.91" |
| Chuck Size | 6" |
| Bar Capacity | 2" |
| Power | 15 hp |
| Max RPM | 4,500 RPM |
| Turning Dia | 8.68" |
| Tailstock | No |
SPINDLE BORE: 1.65"
MAX TURN DIA: 5.91"
MAX LENGTH: 3.15"
CHUCK: 6"
SPINDLE SPEEDS: 4500 RPM
SPINDLE MOTOR: 15 HP
SPINDLE NOSE: 140 Flat
X-AXIS TRAVEL/CROSS: 5.91"
Z-AXIS TRAVEL/LONGITUDINAL: 6.1"
X-AXIS RAPID TRAVERSE: 944 IPM
Y-AXIS RAPID TRAVERSE: 944 IPM
MACHINE DIMENSIONS: (APPROX.) 74"x85"x100"
WEIGHT: (APPROX.) 11,000 LBS
