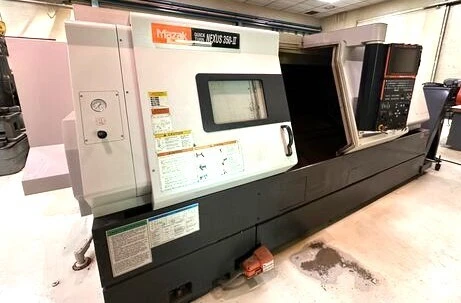

MAZAK QUICK TURN NEXUS 350-II-60
CNC Lathes
2009 Mazak QTN 350-II CNC Universal Mazatrol Matrix CNC Color Graphic Control
* Fully Installed Under Power for Inspection. Videos in Process 9-10 Condition.
SPECIFICATIONS
Chuck Size 15"
Bar Capacity 4"
Swing 6.5"
Turning Diameter 16.5"
Spindle Speed 4,000 RPM
Distance Between Centers 62.72"
Turret 12 Station
Chip Removal Chip Conveyor
Dimensions 168.1" x 80.7" x 78.74"
Weight 17,480 Lbs
Equipped With:
Auto Tool Presetter
Tailstock
Murphy Machinery
Office Phone: 262-534-4124
Mobile Phone: 414-520-0843
Email: markmurphy@murphymachinery.com
Web Site: murphymachinery.com
| Swing | 26.8" |
| Machining Length | 60.7" |
| Chuck Size | 15" |
| Bar Capacity | 4" |
| Power | 40 hp |
| Max RPM | 3,300 RPM |
| Turning Dia | 16.54" |
| Tailstock | Yes |
| Live Tooling | No |
| Sub Spindle | No |
| Dimensions | Dimensions 168.1" x 80.7" x 78.74" |
| Weight | 17,480 |
