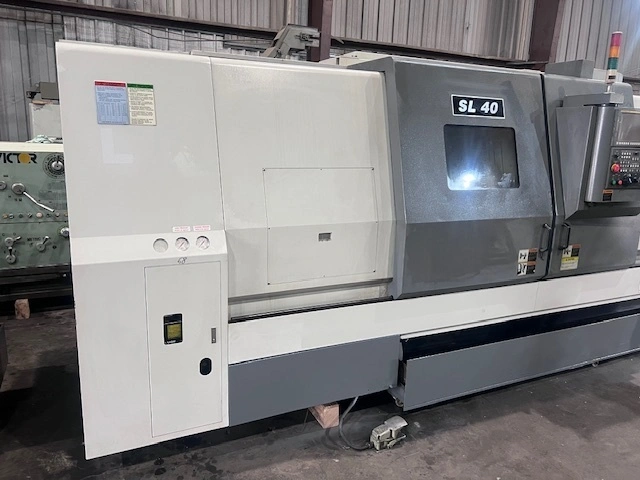

SAMSUNG SL-40/1500 HEAVY DUTY BOX WAYS CNC UNIVERSAL TURNING CENTER WITH FANUC OiTD CNC CONTROL

SAMSUNG SL-40/1500 HEAVY DUTY BOX WAYS CNC UNIVERSAL TURNING CENTER FANUC OiTD CONVERSATIONAL PROGRAMING CAN BE ADDED WITH ALL OPTIONS!

MACHINE SPECIFICATIONS:
Swing …..............................26.8"
Turning Diameter.............…19.7"
Center Distance …...............60.2"
Chuck Size …......................18” 3-Jaw Power Chuck
Bar Capacity ..................…4.6” ( 5.2 “ )
X Axis Travel…....................11”
Z Axis Travel…....................63.19”
Rapid Traverse (X/Z) ......….472/591 IPM
Spindle Nose .................... A2-11
Spindle Speed (RPM).........0-1800 RPM
Main Motor......................30 HP 2-Speed Gearbox

Machine Dimensions ....…197” x 75”
Machine Weight …...........20,500 LBS

EQUIPPED WITH:
- Fanuc 0i-TD Control
- Chip Conveyor
- Coolant Tank
- 18" Hydraulic 3 Jaw Chuck
- Programmable Hydraulic Tailstock (body & quill)
- 2 Speed Geared Spindle
- Box Way Construction
- Quick Tool Pre-Setter

- Misc. Tooling Available
- Available Manuals

Special Reduced Price:........ $ Please Email Request for Quotations.

This is Samsung Heavy Duty Cutting Machine Excellent Parts & Service.

F.O.B.:* Under Power in Showroom Loading included Also Riggers Warehouse.
* Full Operation Videos in Process. Recently Acquired for Stock Inventory.!

I thank your for your review and consideration and look forward to reviewing.
this machine and your requirements at your best timing.
