2006 OKUMA & HOWA Millac 852V

Okuma & Howa 852V w/ Nikken 450 w/ Bison 20" 6-Jaw Scroll Self Centering Chuck 7.48" Thru Hole with Nikken 450 Full Forth Axis Heavy Duty 8" Big Bore Rotary Table w/ CNC Board Install for Direct Programing thru the Fanuc 16iMB CNC Control Fully Cleaned Under Power for Inspection! Rare Opportunity with Installed Options.

This Machine Ran Light Full Forth Axis Milling Downhole Drilling Shaft Parts or Long 4th. Axis Parts.

Okuma & Howa MILLAC 852V Vertical Machining Center Provides High Rigidity and
Heavy Duty Box Ways is well suited for machining large, heavy work pieces.

Okuma’s MILLAC 852V Vertical machining center, represents the pinnacle of large machining centers with high rigidity, heavy cutting ability and high operability. The strong base column construction has optimally-placed ribs to counter chatter and twisting during heavy-duty cutting. Traditional box ways are used for all axes to provide high accuracy and rigidity over the long term. This Machine equipped with the use of variable speed gear head and large-diameter spindle bearings, this vertical machining center can perform heavy-duty cutting and high speed machining with high torque from low to high speeds. The X, Y, Z travels and large table designed to withstand heavy loads are well suited for machining large, heavy work pieces.

Key Features of the OKUMA-HOWA MILLAC 852V Vertical Machining Center
Max. Load Capacity kg (lb) 3,800 (8,360)
Axis Travels (X/Y/Z) mm (in) 3,050/ 850/750 *(80.7 /33.46/29.53)
Rapid Traverse m/min(ipm) X/Y: 12 (472), Z: 16 (630)
Spindle Speed min-1 6,000 Cat 50 Big Plus
Max..Spindle Torque Nm (lbs ft) 481/390 (355/288) 30min/cont.

MAIN SPECIFICATIONS:
X-Axis Travel ............................... 80.71"
Y-Axis Travel ............................... 33.46"
Z-Axis Travel ............................... 29.53"
Table Dimensions ....................... 86.6" x 33.46"
Spindle Speed ............................ 6,000 RPM
Spindle Taper ............................. CAT-50 BIG PLUS

EQUIPPED WITH:

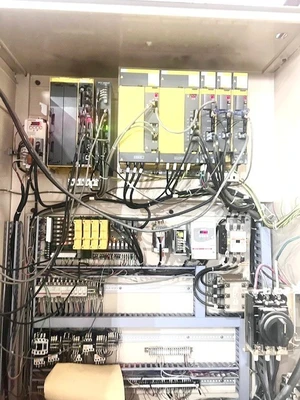

Fanuc 16i-MB CNC Control w/Full Forth Axis Board Installed Nikken 450 Big Bore 6" Thru Hole Full 4th Axis Rotary Table 60k New Cost M-Code Spindle Center Air Blast
36-Station Automatic Tool Changer
Heavy Duty Chip Augur Way Covers
Nikken Factory Heavy Duty Tailstock

www.transferbigfiles.com Machine Under Power Operational Videos!

Okuma & Howa 852V Automatic Tool changer / Y-Axis / Nikken 450 Rotary Table Video #1.
http://tbf.me/a/CLIeBy

Okuma & Howa 852V Automatic Tool changer / X-Axis / Nikken 450 Rotary Table Video #2.
http://tbf.me/a/CIVPc8

Special Reduced Price.:........................$ Full Quote on Request with All Options!.

New Cost Machine 300k Installation Full Forth Nikken 450 Table 60k!

F.O.B: Machine Prep Loading Included in Pricing.

Shipping Quotes on Request.
